BIHLER B 20K HIGH-PERFORMANCE WELDING CONTROL SYSTEM

Resistance welding in perfection

With the B 20K high-performance welding control system, you simply achieve better welding results.

The B 20K combines all process, measurement and monitoring systems into one comprehensive system. Stepless welding frequency adjustment between 1,000 and 20,000 Hz guarantees a highly dynamic and even finer control compared to low-frequency technologies for even better resistance welding results. From micro to macro welding and all resistance welding processes, the B 20K covers an immense range of applications. Furthermore, up to 18 servo axes for e.g. controlling contact welding equipment can also be used to integrate press applications and other options in the B 20K.



Features

Process frequencies of up to 20,000Hz

  • Compared to low process frequencies, the higher process frequencies allow for even more adjustment options to apply the energy required for the welding process metered and targeted. This leads to higher quality and an extended range of welding applications.



100% protection from power fluctuations

  • The standard active power supply module offers protection from power fluctuations. The active power supply module provides a separate supply voltage for the inverter independent of the mains voltage. This means the inverter supply is independent of mains voltage drops and fluctuations and maximum process reliability is guaranteed.



Maximum process transparency

  • Five standard measuring channels for logging welding process data are integrated in the B 20K. Measuring curves and measured values can be used for closed-loop control, process monitoring and diagnostic functions and provide all options required for a reliable and transparent welding process.



Quick welding profile manipulation during production

  • Automatically with a stepper function that changes the welding profile after a defined number of welds or by process variables. Manually with the quick online parameter adjustment feature. In both cases, there is no machine downtime and the welding parameters can be identified, adapted and optimized quickly.



Control of NC axes

  • In addition to the process, measuring and monitoring functions, servo-controlled movements for welding applications can be easily implemented in the B 20K. Movement sequences for the welding tool are adapted to the welding process and controlled by the welding controller. They can be integrated into any existing manufacturing system.

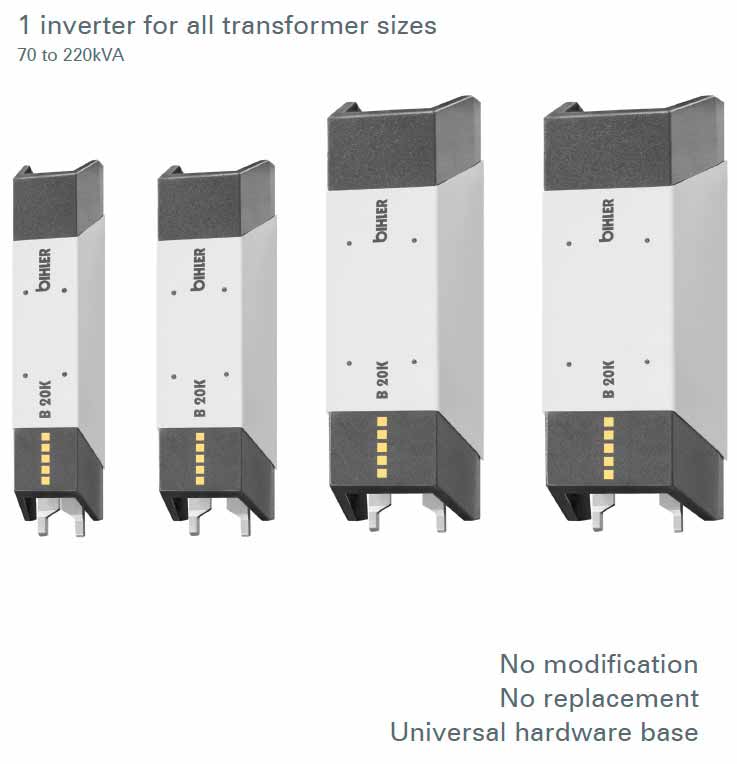

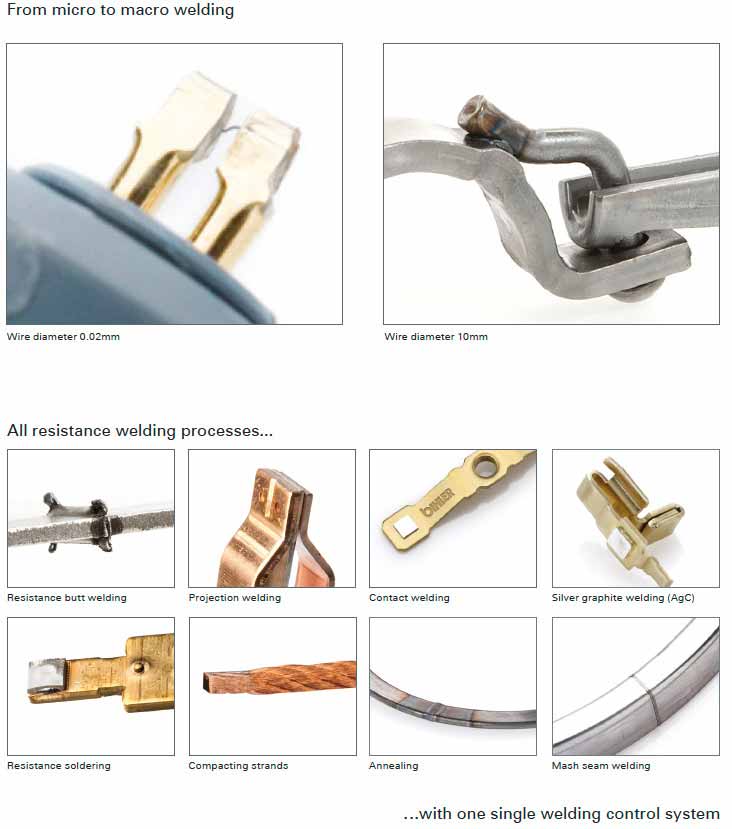

Range of applications
Bihler Welding Control System B 20K for resistance welding processes
Variants

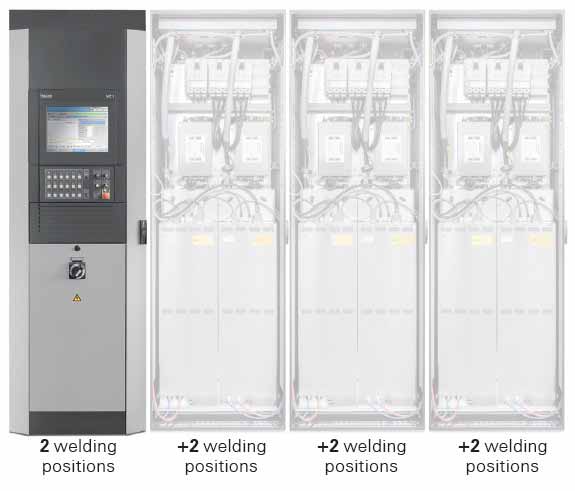

Variant 1: B 20K Stand-alone

Stand-alone with touchscreen operation and keyboard on the control cabinet.

The standard version includes 2 welding positions. Extensions with a maximum of 8 welding positions are possible with additional cabinets. This version provides compatibility with the B 1000 and B 5000 welding control systems. Input and output functions are possible without programming. The variety of applications for the stand-alone version ranges from integration in production and manufacturing systems to replacing existing B 1000 and B 5000 welding control systems.



Bihler Welding Control System B 20K for resistance welding processes

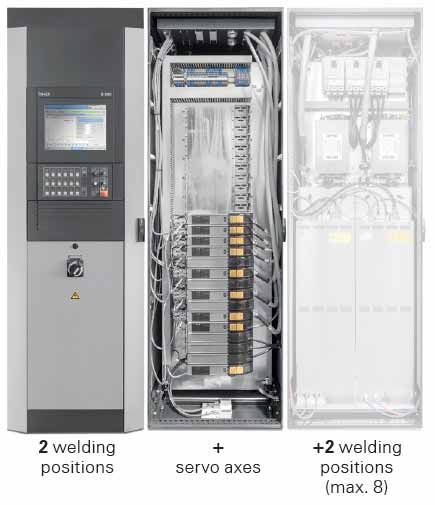

Variant 2: B 20K-NC

Stand-alone with NC control for welding tools.

Can be integrated in an existing machine or an existing production system. In doing so, the B 20K is extended with additional axis cabinets. Application for integrating welding tasks with progressive equipment under a press. This allows for the integration of welding tool movements independent of a fixed press stroke. Faster process times, no bounce behavior of the press head, reduced electrode wear and simplified integration compared to conventional practices can be achieved.

Bihler Welding Control System B 20K for resistance welding processes

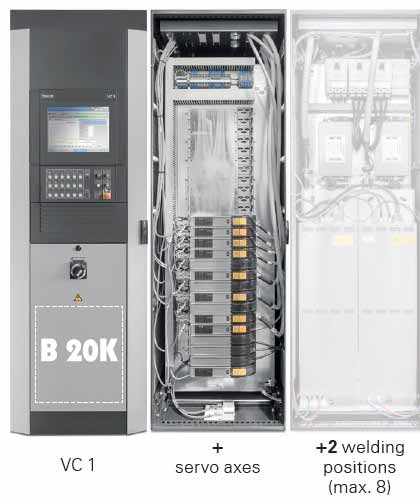

Variant 3: B 20K Plugin in VC 1

All-in-one version.

Can be integrated in an existing machine or an existing production system with VariControl VC 1. The B 20K Plugin combines welding control, machine and process control with all features of the B 20K and the VC 1 VariControl. Functions of both control platforms can be linked and exchanged bidirectionaly as well as merged to form a single control system. All elements required for welding, production and assembly tasks are integrated to enable implementing a fully automatic production solution.

Bihler Welding Control System B 20K for resistance welding processes

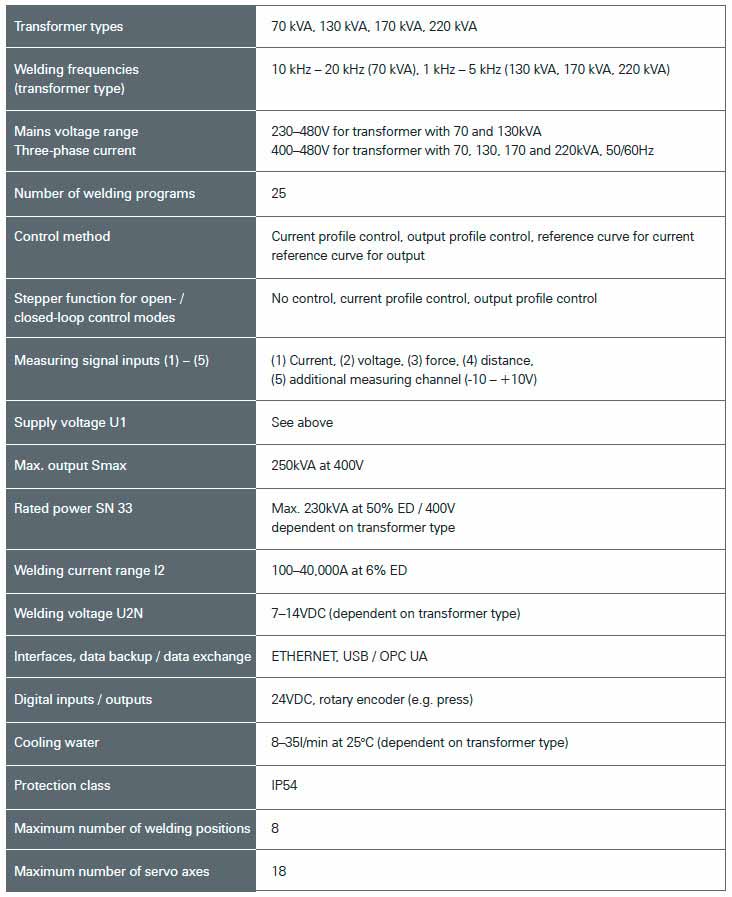

Technical data
Bihler Welding Control System B 20K for resistance welding processes
