BIHLER THREAD FORMING UNITS GSE K / KS

Highlights GSE

Compact tapping units for highly efficient forming and cutting of threads

  • Production speeds of up to 260 threads/min.
  • Rapid retooling system for shortest possible setup times
  • Increase of tool life up to 50%
  • Wide range of applications and easy handling
  • Units can be integrated in any manufacturing concept

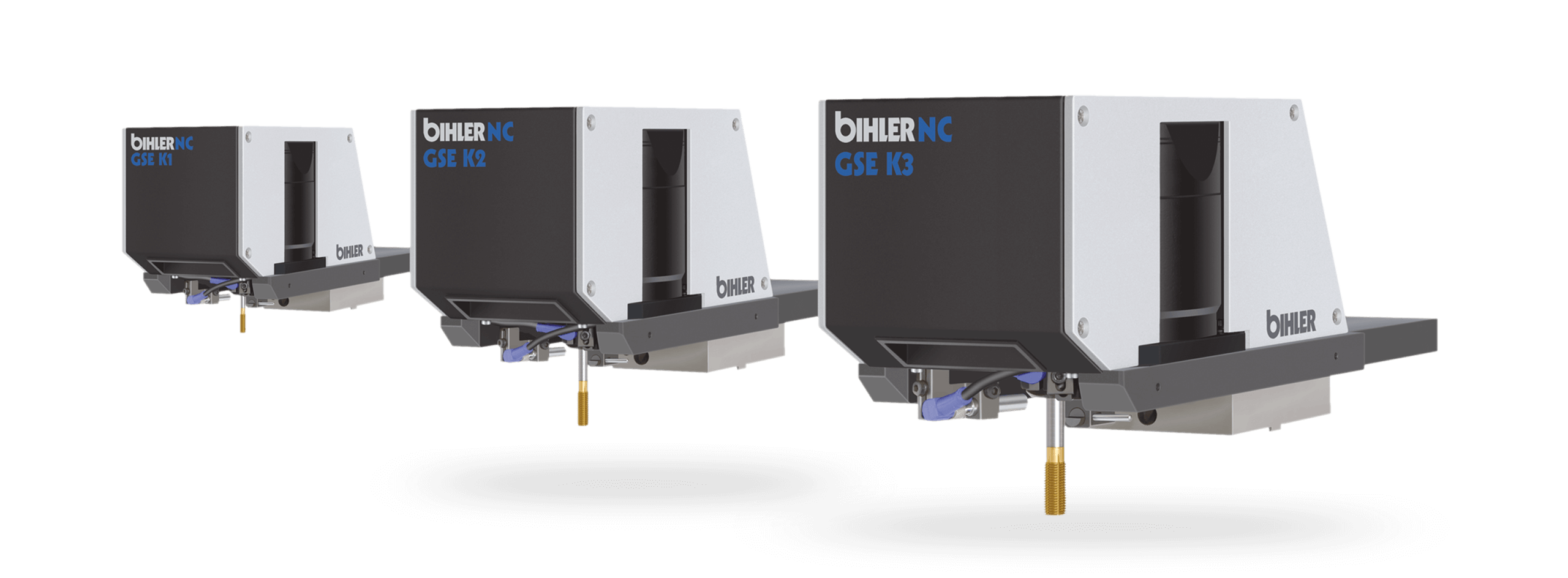

  • GSE K: Flat design for use in presses and / or where tool installation height is low

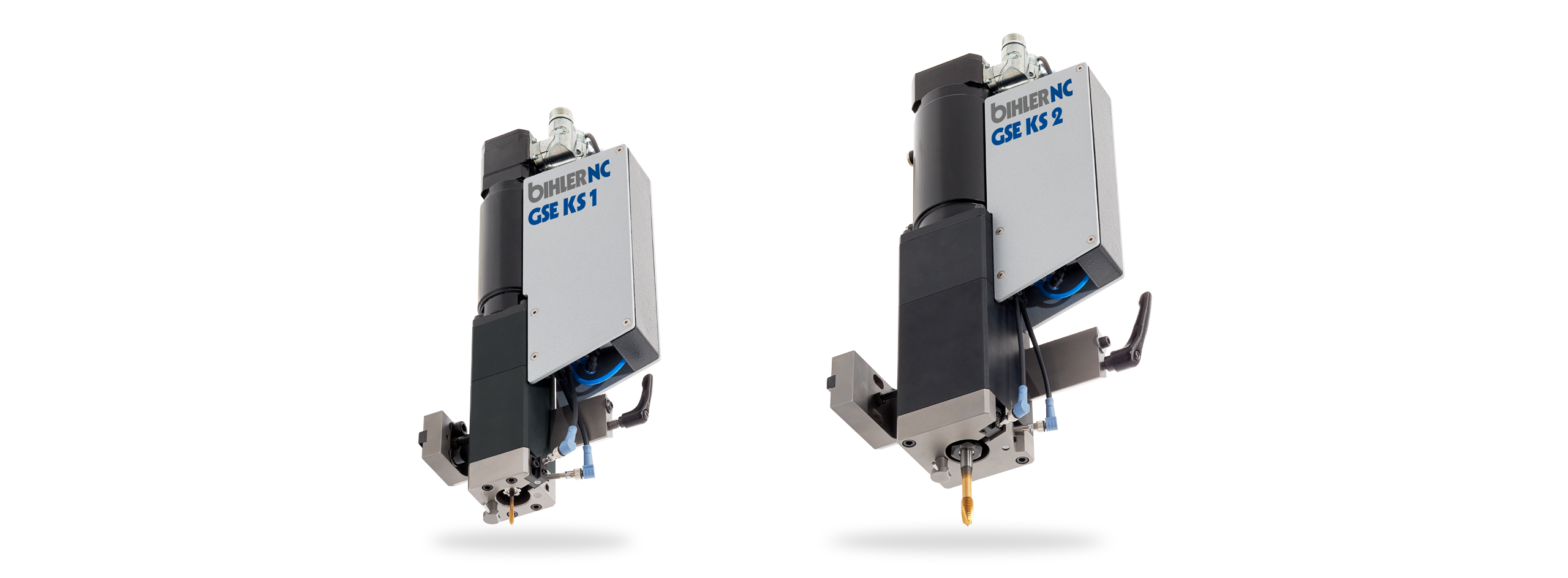

  • GSE KS: Narrow design for use in restricted spaces



Technical Data

GSE K1 / K2 / K3
Thread diameter: M2 - M6 / M5 - M12 / M10 - M20
Output max. 260 1/min. / 200 1/min. / 100 1/min.
Speed range: 500 - 7000 1/min. / 500 - 5000 1/min. / 300 - 2500 1/min.
Stroke: max. 24 mm / 27 mm / 32 mm
GSE KS1 / KS2
Thread diameter: M2 - M6 / M5 - M10
Output: max. 260 1/min. / 200 1/min.
Speed range: 500 - 9000 1/min. / 500 - 9000 1/min.
Stroke: max. 24 mm / 27 mm
