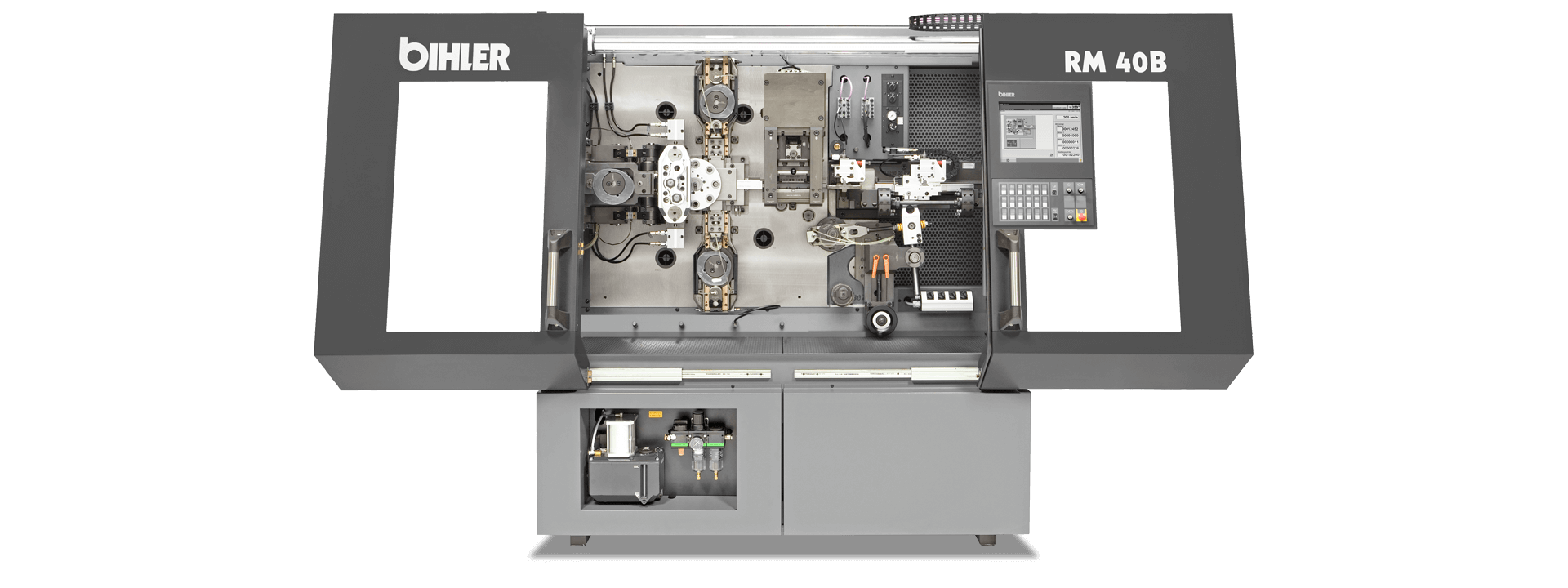

Bihler Multislide Machine RM 40B for straight bushes and flange bushes

BUSHING MACHINE RM 40B (MULTI-SLIDE MACHINE)

Highlights RM 40B

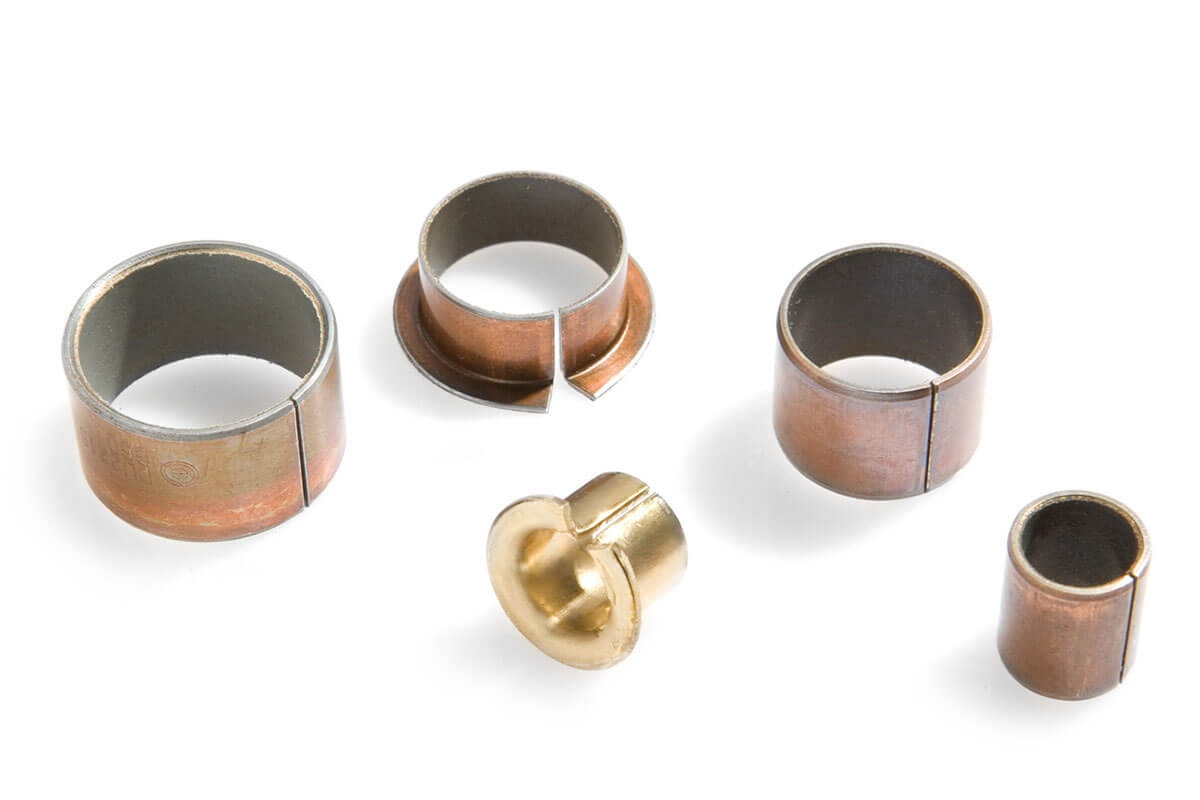

Standardized, powerful machine system for mass production of straight bushes and flanged bushes

  • Bushing inner diameter from 6 to 18 mm; max. length 40 mm
  • High production speeds up to 400 1/min.
  • Standardized tooling concept (basic tooling, 2 sets of tooling fixtures, active tooling parts)
  • Very short tooling change-over times
  • Perfectly designed for international use (only active parts have to be dispatched)
  • Cost-effective all-in-one package
  • Easy and secure operation with VariControl VC 1E



Technical Data

Stroke rate: Max. 400 1/min. (cylindrical, straight
bushes), max. 250 1/min. (flanged
bushes, collar bushes)
Press: Nominal stamping capacity 70 kN,
stroke 12 mm
Slide units: Nominal forming capacity 30 kN,
stroke 25 mm
Bushing inner diameter: 6 mm - 18 mm
Bushing length: Max. 40 mm
Material: Strip thickness max. 1.5 mm, strip width
max. 40 mm (depending on material
and process)
Weight: Approx. 3.000 kg
  READ MORE ►



Technology in Motion - RM 40B

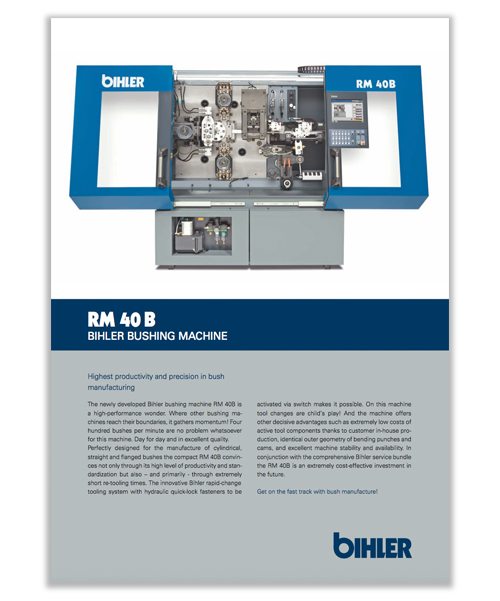

Flyer RM 40B
