Bihler Multislide Machine GRM 80P hybrid for stamped and formed parts and sub-assemblies

STAMPING AND FORMING MACHINE GRM 80P HYBRID (MULTI-SLIDE MACHINE)

Highlights GRM 80P hybrid

Powerful machining system for flexible mass production of larger stamped and formed parts as well as sub-assemblies

  • Easy integration of servo axes for easier tooling solutions (high flexibility in case of variant diversity)
  • Maximum processing room due to spatial separation of stamping and forming operations
  • More than 2,100 mm (82”) machining path with linear tools
  • Rigid 400 kN press for high-performance carbide tools
  • Large center aperture for flexible integration of NC central mandrels (complete set-up from machine front side)
  • Easy and secure operation with VariControl system



Technical Data

Stroke rate: Variable drive control from 5 to max. 250 1/min.
Press: Nominal stamping capacity 400 kN, stroke 20 mm
Slide units: Max. nominal forming capacity 90 kN, max. stroke 95 mm
Feed length: NC feed: any feed length, mech. feed: max. 500 mm, with feed cycle reduction
Material: Max. strip thickness: 6 mm, max. strip width 80 mm, max. wire Ø 6 mm (depending on material and process)
Dimensions: Width 3,930 mm x depth 1,595 mm x height 2,220 mm
Weight: Approx. 4,500 kg (without tooling)
  READ MORE ►

Technology in Motion - GRM 80P hybrid

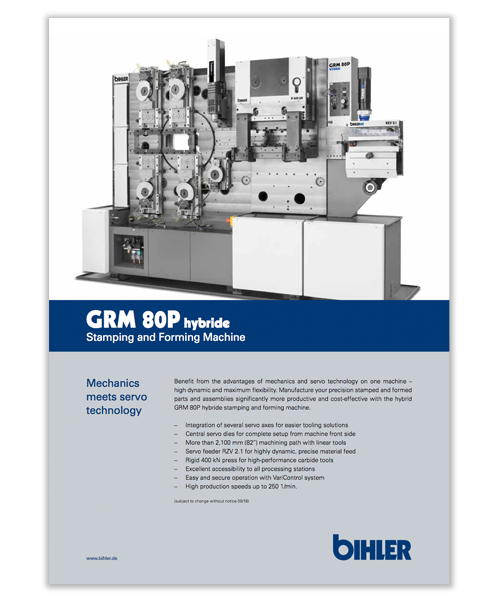

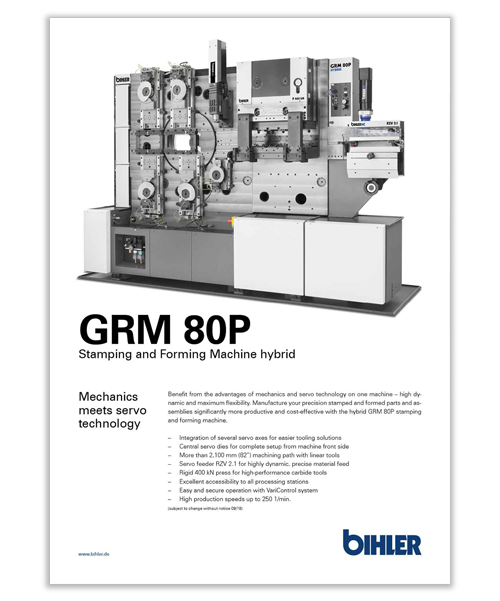

Flyer GRM 80P hybrid
