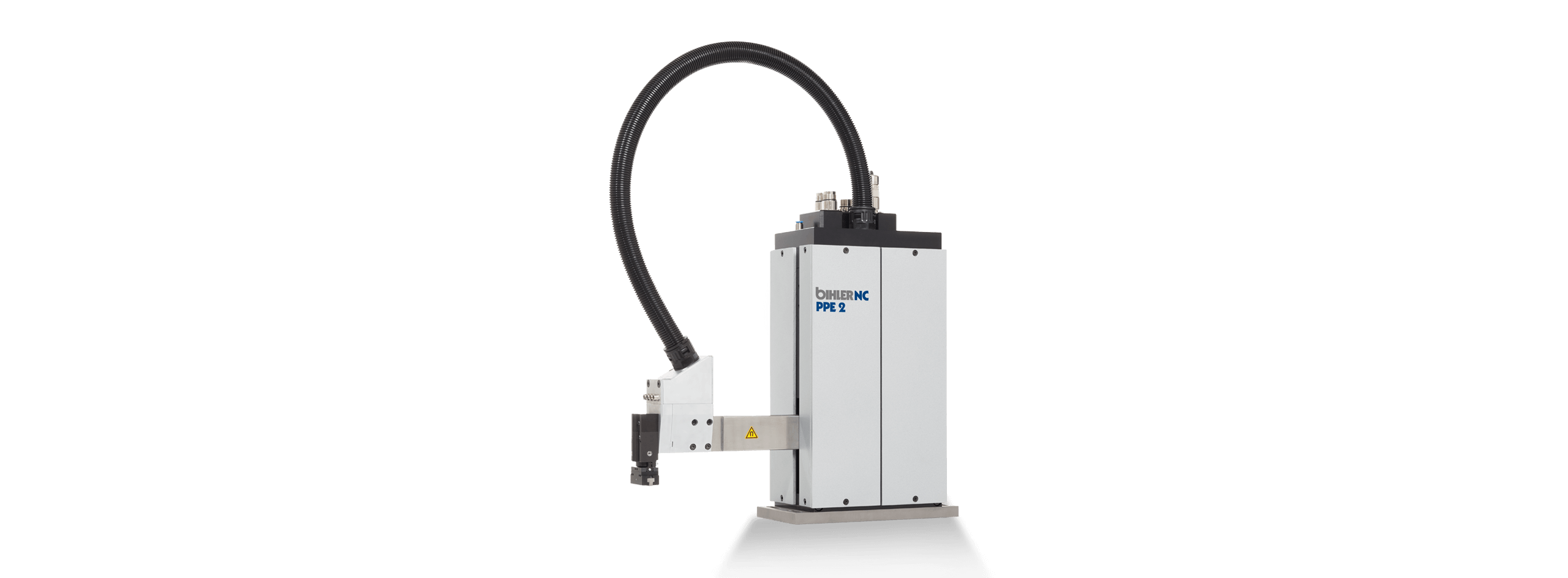

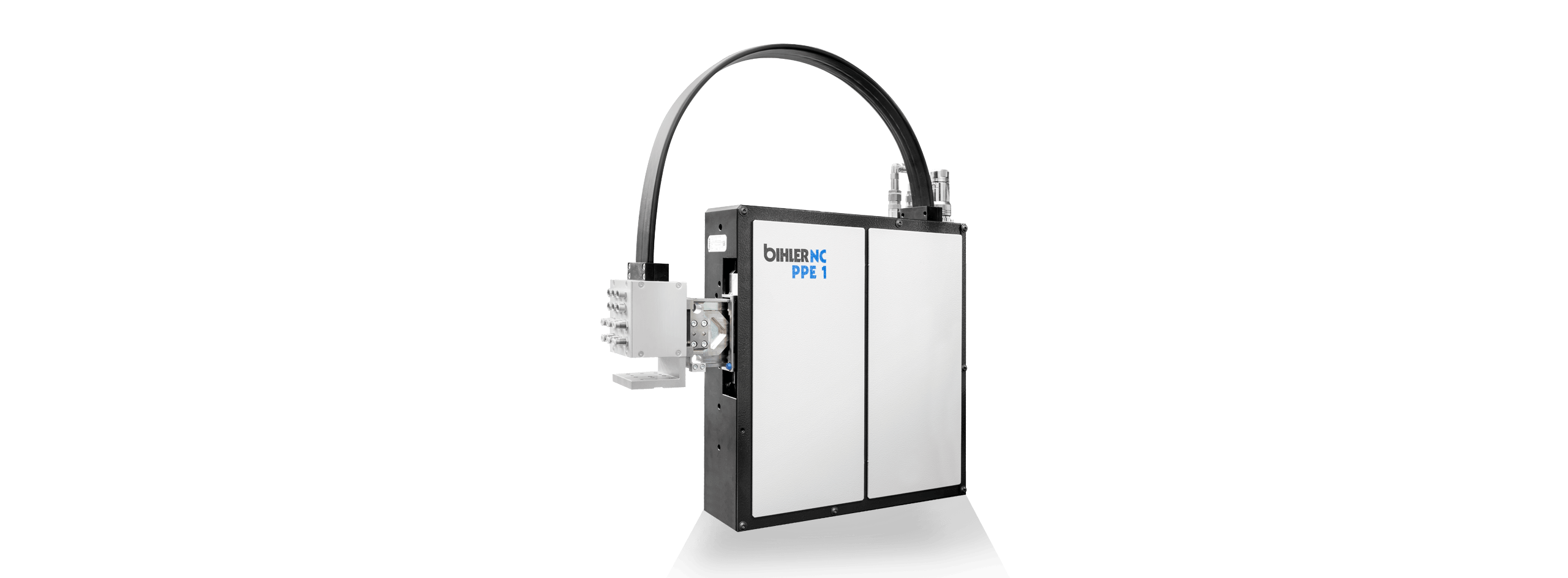

PICK & PLACE UNITS

Highlights PPE

Compact processing modules for pick and place operations

  • Very short cycle times
  • Highest repeat accuracy
  • Synchronous motion sequence with the controller unit
  • Large vertical and horizontal traverse paths
  • All positions and speeds freely programmable
  • Integrated absolute position measuring systems
  • Plug & Play - very short start-up times
  • Low-maintenance



Technical Data

Vertical stroke: max. 60 mm / max. 75 mm
Horizontal stroke: max. 150 mm / max. 145 mm
Positioning accuracy: +/- 0,02 mm
Repeat accuracy: +/- 0,01 mm
Handling weight: max. 1,5 kg
Pulse rate: max. 100 1/min. / max. 120 1/min.
  READ MORE ►

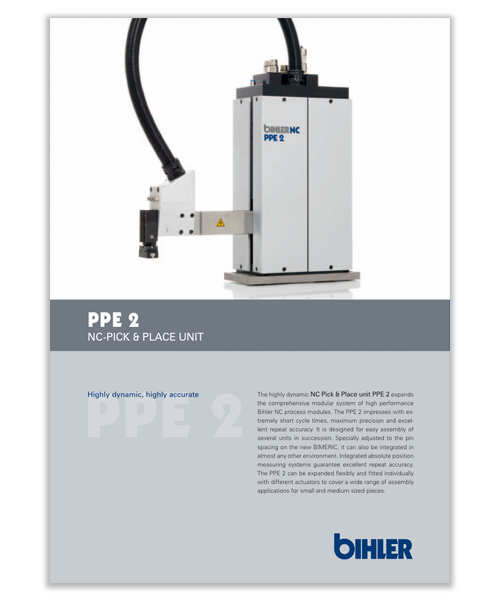

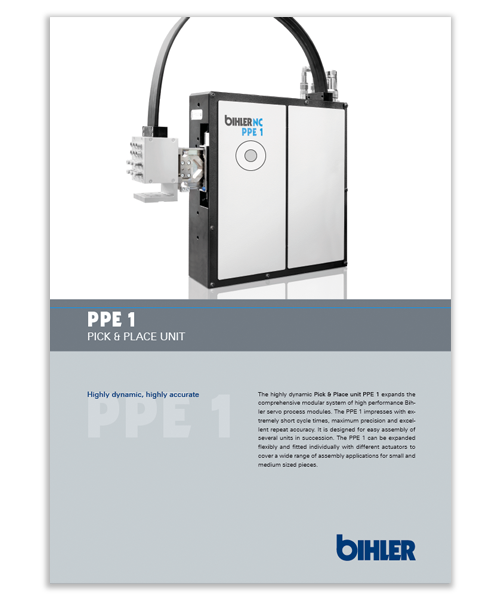

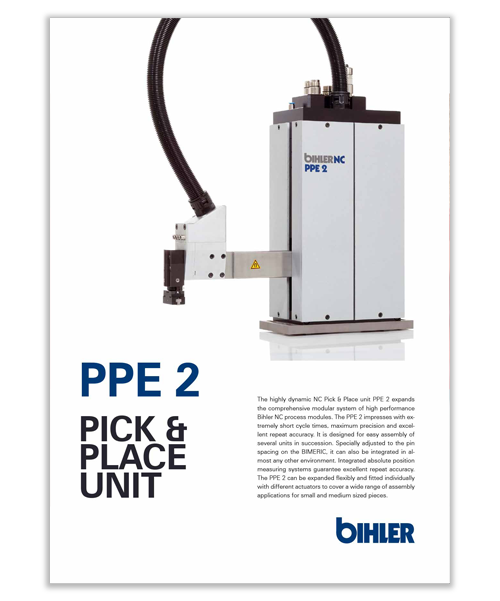

Brochure - Pick & Place Units PPE 1 / PPE 2
