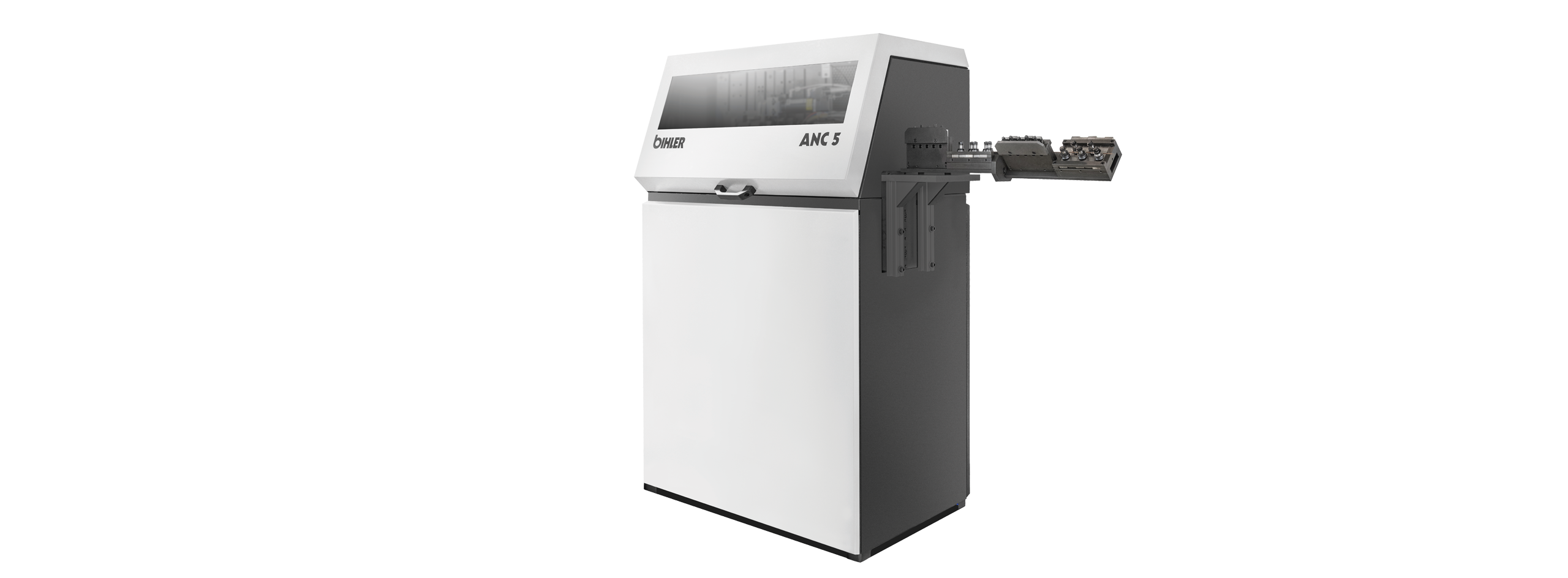

INSULATION STRIPPING SERVO UNIT ANC 5

Highlights

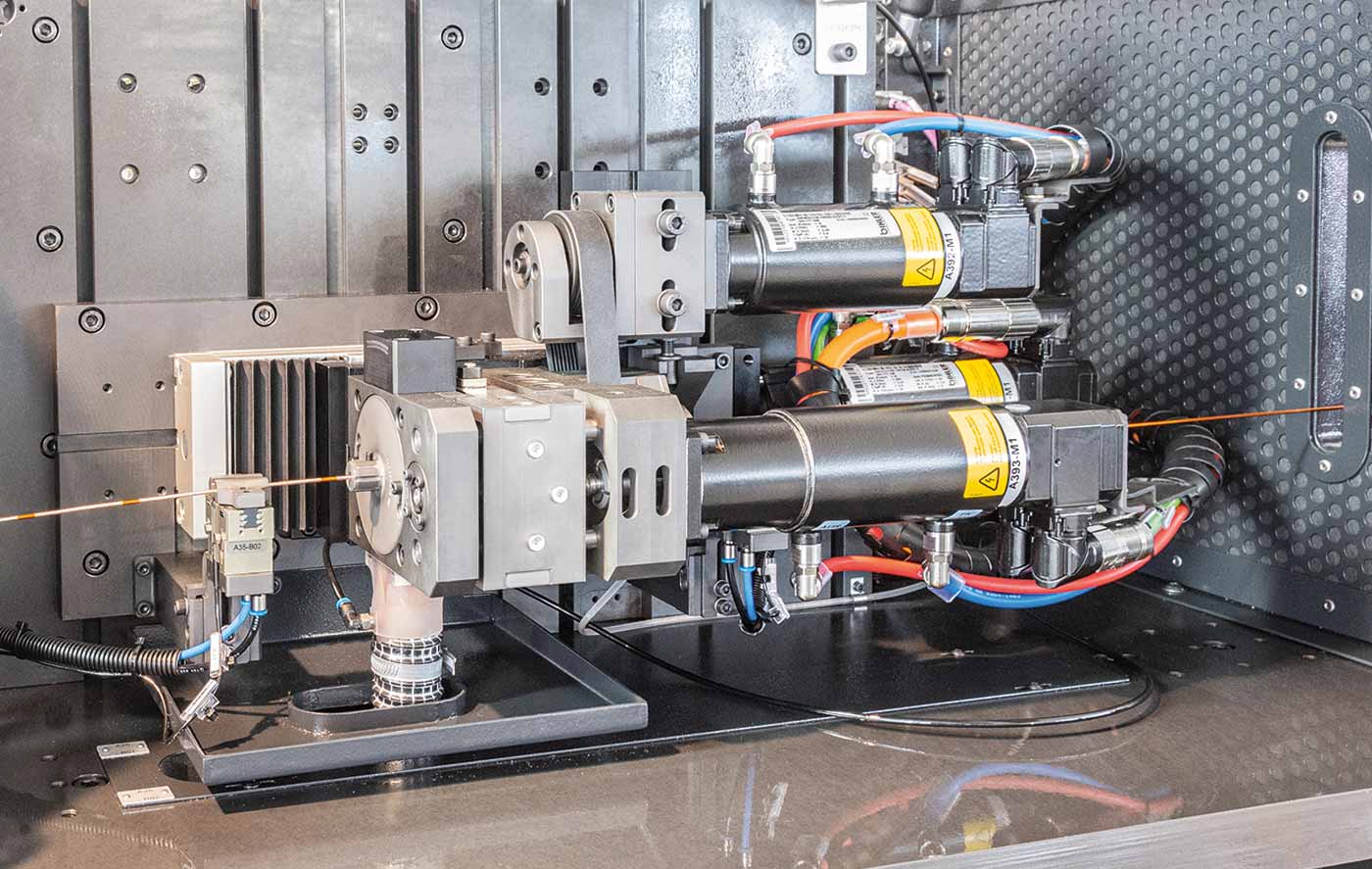

The ANC 5 insulation stripping servo unit is used for stripping enamel-insulated round wires.

  • VC 1 software module
    Simple operation
    Input of cutting values
    - desired diameter
    - cutting speed
    - chip thickness
    The input of cutting data leads to reproducible results with different wires.

  • Optimized lubrication
    Minimum quantity lubrication is used for the lubrication of the moving parts inside the ANC 5.
    The minimum quantity lubrication means that compressed air is no longer required for lubrication. In addition, oil consumption is reduced to a minimum.

  • Optimized chip extraction
    Very low contamination inside the ANC 5


More info: Bihler technologies - insulation stripping



Technical data

Wire diameter
max.
5 mm
Wire diameter
min.
0.5 mm
Rotation of blades max. 12000 1/min
Stripping length max. 50 mm
Stripping length min. 0.5 mm




Flyer - "Insulation stripping servo unit ANC 5"

Highly precise insulation stripping
