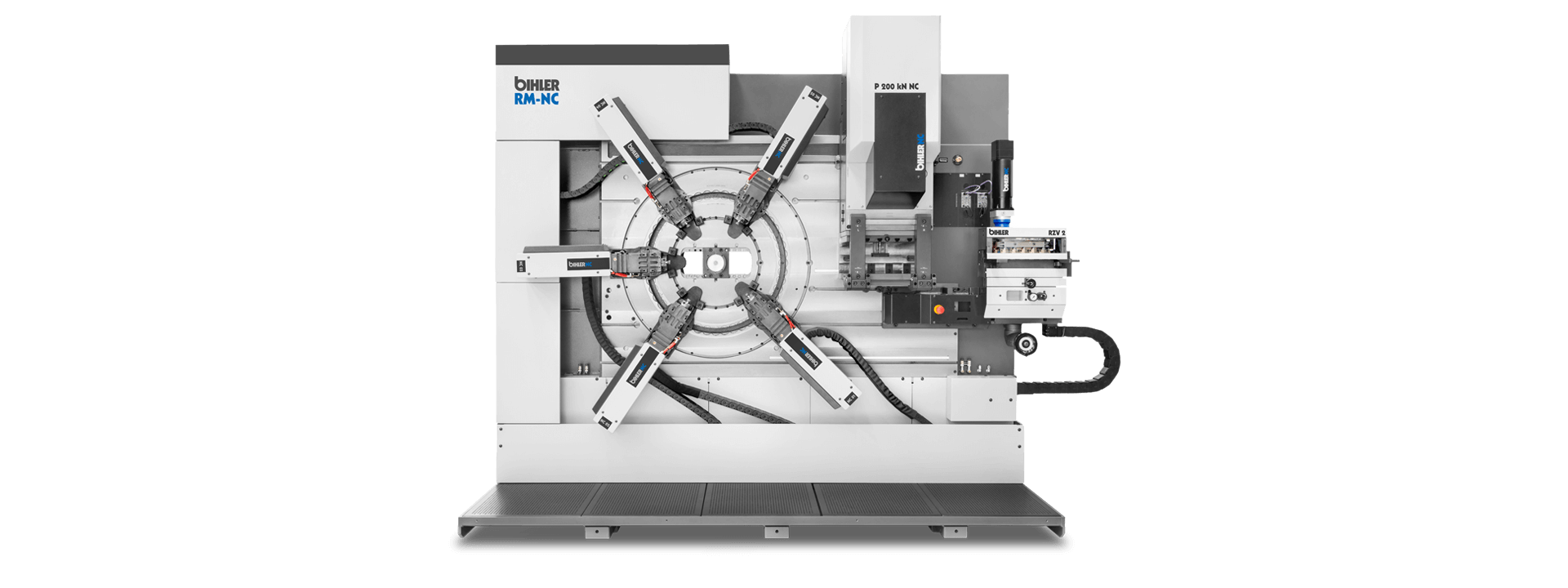

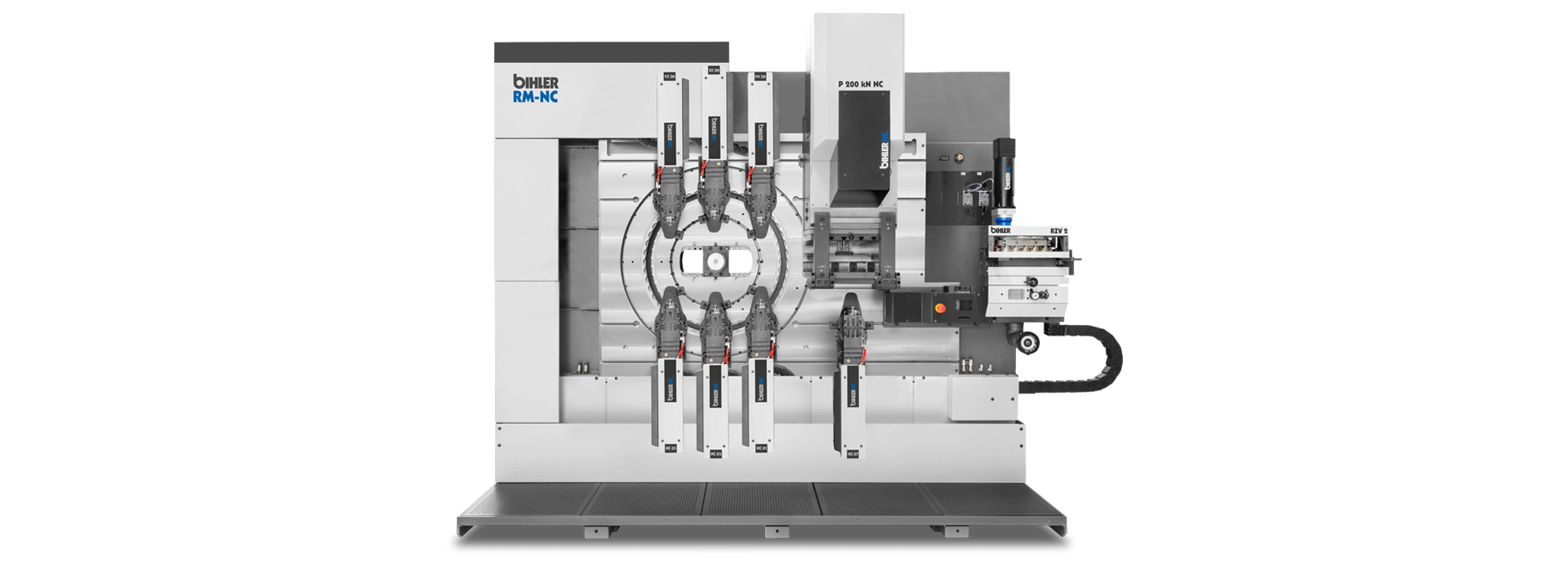

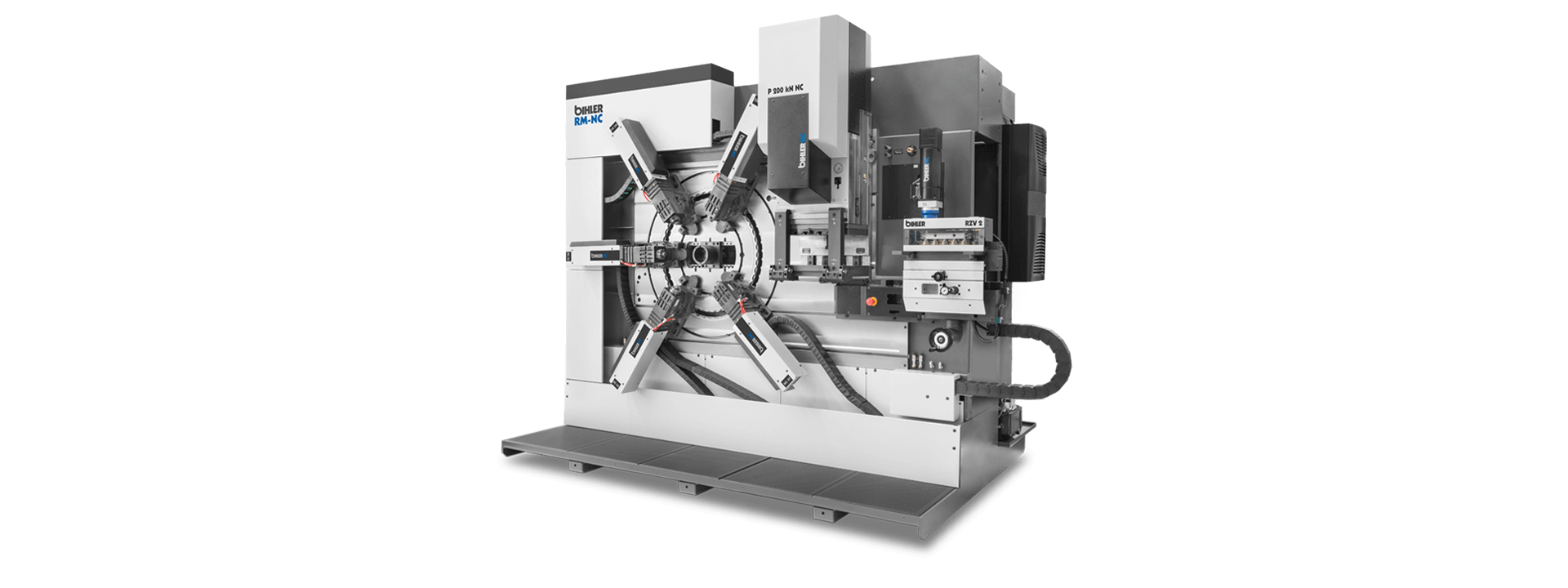

SERVO STAMPING AND FORMING MACHINE RM-NC (MULTI-SLIDE MACHINE)

SERVO STAMPING AND FORMING MACHINE RM-NC (MULTI-SLIDE MACHINE)

Highlights RM-NC

Powerful servo machining system for an efficient production of stamped and formed parts made from strip or wire as well as round bodies in small and medium batch sizes

  • High production speeds up to 300 1/min.
  • Standardized machine platform for radial LEANTOOL system
  • 100% reproducibility and fine adjustment at the push of a button
  • Rapid response to short-term customer requests
  • Full tool compatibility with RM series and FINZER machines (ZUBHS 100/200, ZUB 200/220/250)
  • Decisive increase in output (more than 300% possible*)
  • Extremely short set-up times (up to 10 times faster*)

    *When moving tools from mechanical RM / Finzer machines to RM-NC



Technical Data

Stroke rate: variable drive control up to max. 300 1/min.
Press: nominal stamping capacity 200 kN,
stroke 12 mm
Servo units: max. nominal forming capacity 20 kN, max. stroke 120 mm
Feed length: any feed length
Material: max. strip thickness: 4 mm, max. strip width
80 mm, max. wire Ø 4 mm (depending on material and process)
Dimensions: width 3,050 mm x depth 1,820 mm x height 2,600 mm
Weight: approx. 6,000 kg (without tooling)
