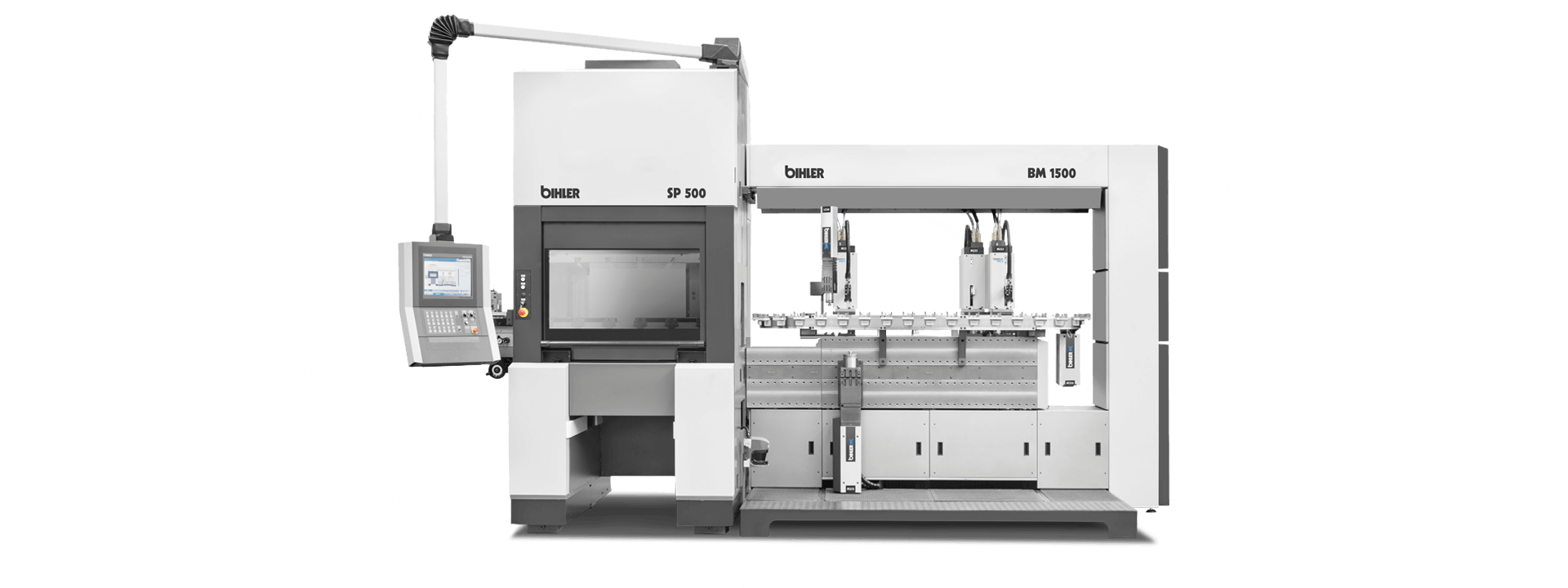

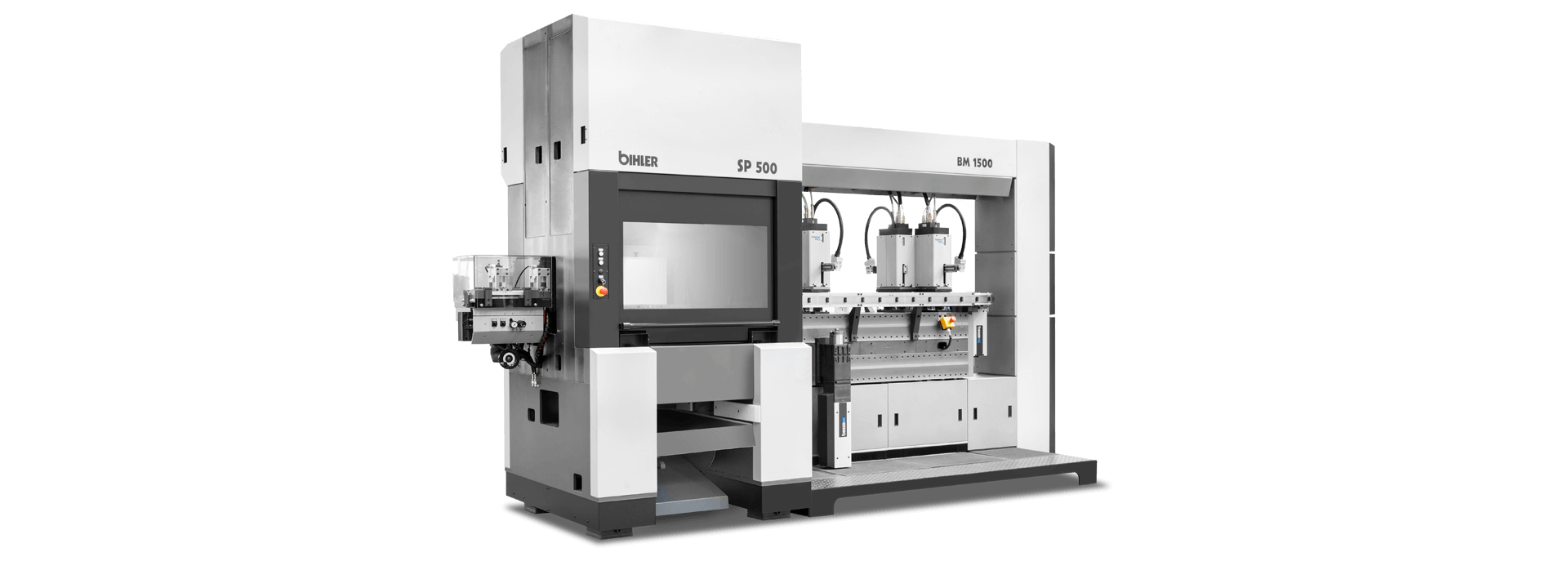

SERVO PRODUCTION AND ASSEMBLY SYSTEM BIMERIC SP (SUBASSEMBLY PRODUCTION)

SERVO PRODUCTION AND ASSEMBLY SYSTEM BIMERIC BM

Highlights BIMERIC SP

Combination of servo press and BIMERIC platform for highly efficient manufacture with progressive tools

  • Continuous component handling: immediate further processing of the stamped and formed parts prefabricated in the press into ready-to-install assemblies on the BIMERIC platform
  • Ample space on the BIMERIC platform for processes outsourced from the press, such as contact welding, thread forming, screw joining, assembly, etc.
  • Streamlining and simplification of the process chain
  • Consistently high product quality
  • Savings on downstream equipment and logistics costs
  • Optimum accessibility to all stations for fast set-up times (with a high number of variants, small quantities)
  • One central VariControl for all processes


"b.inside" - You can find many interesting manufacturing examples here.



Technical Data

Stroke rate: variable drive control up to max. 250 1/min.
Press: nominal stamping capacity 500 kN, stroke 15 - 63 mm, with SP 500
Servo units: max. nominal forming capacity 40 kN, max. stroke 120 mm
Feed length: servo feed: any feed length
Material: max. strip thickness: 4 mm, max. strip width 250 mm, max. wire Ø 4 mm (depending on material and process)
Dimensions: depending on type
Weight: depending on type
  Request form ►

Technology in Motion - BIMERIC SP

Brochure BIMERIC SP
Servo production and assembly system
