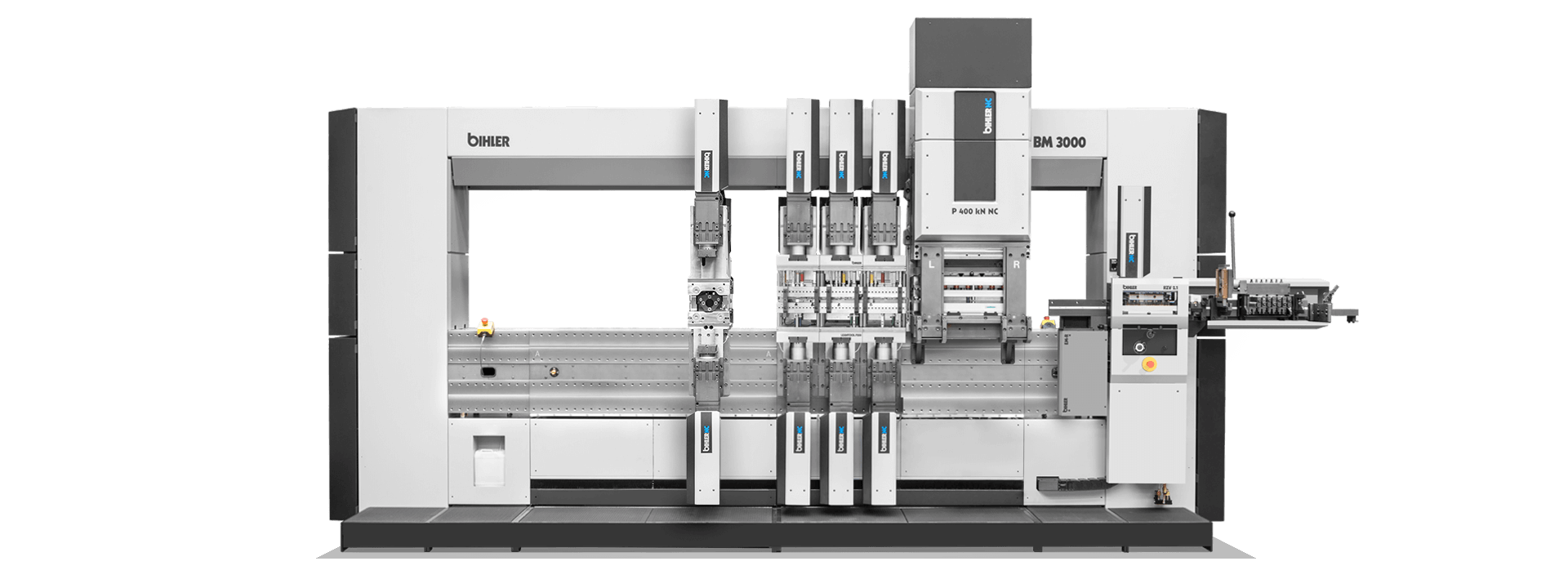

SERVO PRODUCTION AND ASSEMBLY SYSTEM BM MODULAR (SUBASSEMBLY PRODUCTION)

SERVO PRODUCTION AND ASSEMBLY SYSTEM BIMERIC BM

Highlights BIMERIC Modular

Modular, standardized servo production and assembly system for highly efficient component and assembly production

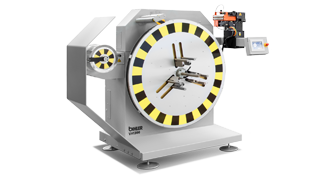

  • Standardized, pre-mounted process modules for feeding, stamping and forming (designed for 80 mm strip width)
  • PLUS-empty locations for further processing modules and individual units

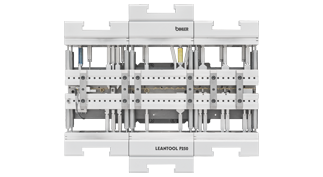

  • Full compatibitlity with uniformly designed linear tools:
    up to 70 % standard tool parts
  • Very fast and 100% reproducible setup of tool modules
  • Perfectly designed for small and medium batch sizes and large variant diversity
  • Flexibly scalable for future tasks



Technical Data

Stroke rate: variable drive control up to max. 250 1/min.
Press: max. nominal stamping capacity 400 kN

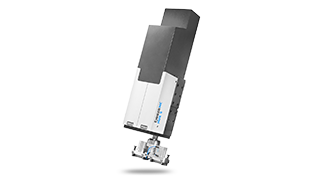

Servo units: max. nominal forming capacity 31 kN
Feed length: servo feed: any feed length
Material: max. strip thickness: 4 mm, max. strip width 80 mm, max. wire Ø 4 mm (depending on material and process)
Dimensions: depending on type
Weight: depending on type




Click here for the article in "b on top 2022":
Schürholz - Manufacturing electric motor housings inline

Standardized Process Modules

Modular Tooling Technology

Central Control Platform
