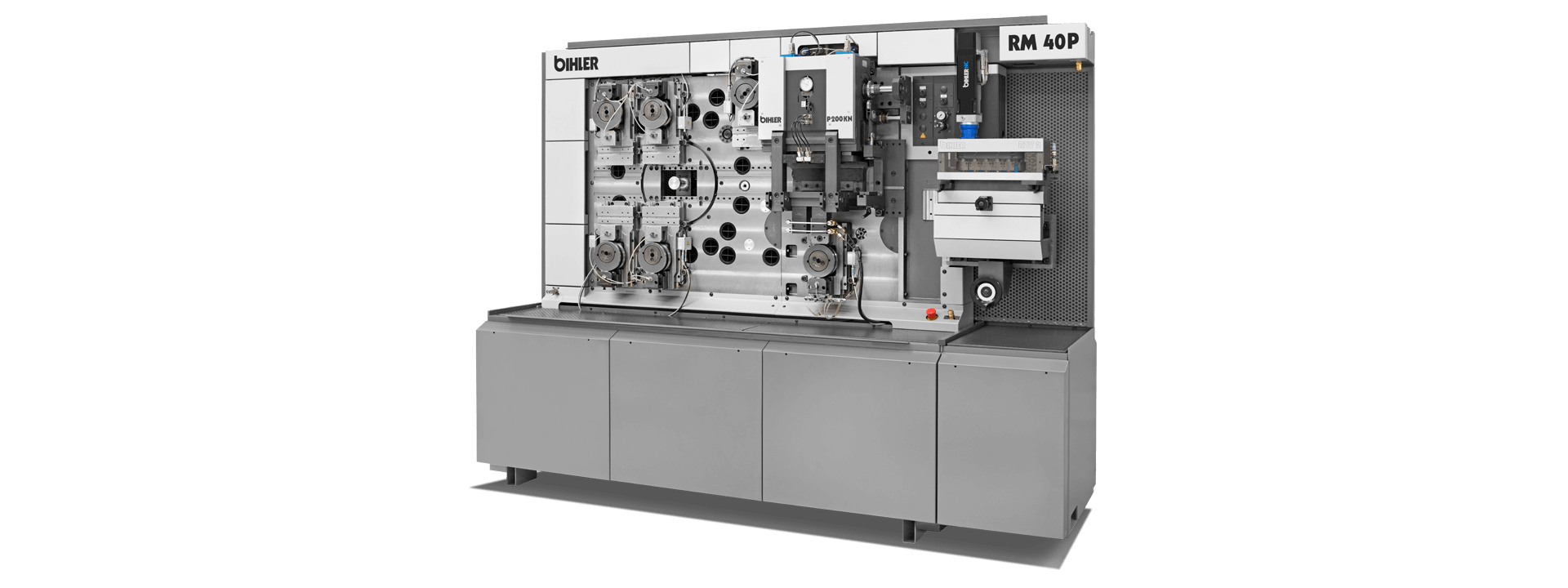

STAMPING AND FORMING MACHINE RM 40P (MULTI-SLIDE MACHINE)

STAMPING AND FORMING MACHINE RM 40P (MULTI-SLIDE MACHINE)

Highlights RM 40P

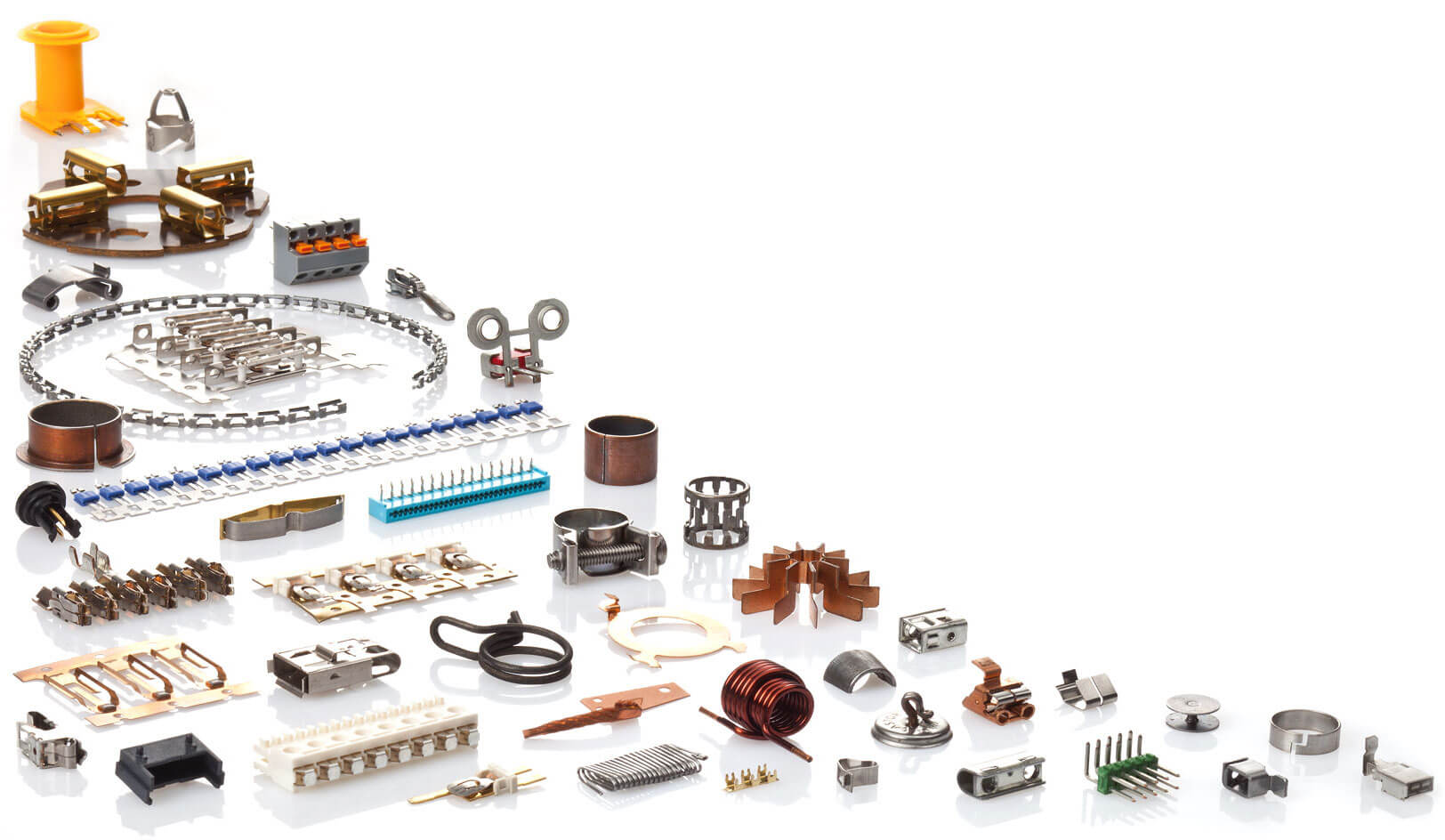

Universally applicable, powerful machine system for mass production of larger stamped and formed parts as well as sub-assemblies

  • High production performance up to 350 1/min.

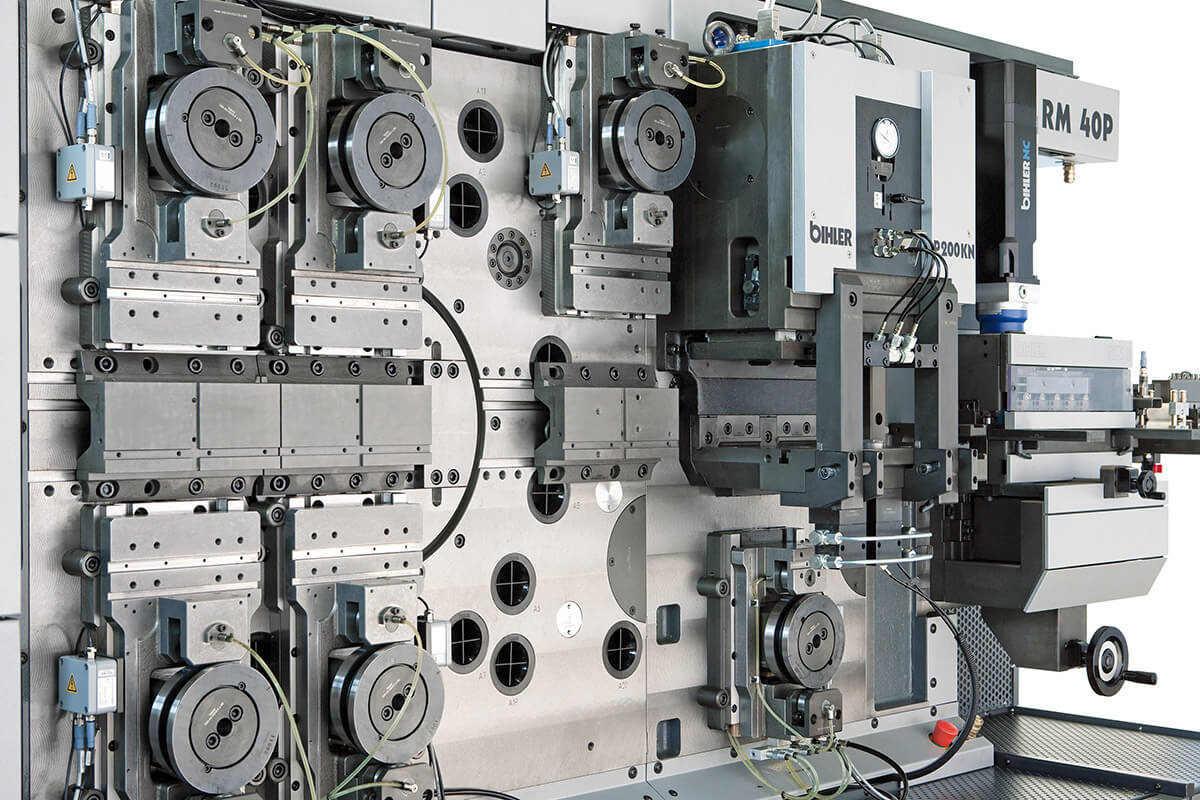

  • Separate press module with 200 kN two-point eccentric press
  • More than 1,400 mm of manufacturing space in case of linear toolings
  • Lots of space for integration of additional processing units (contact welding, tapping, inserting screws etc.)
  • Tool clamping system provides minimum set-up time

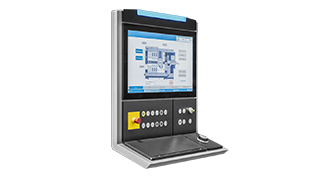

  • VariControl VC 1 for intuitive handling


Production of "Technical Springs" - click here for more info



Technical Data

Stroke rate: Steplessly from 5 to max. 350 1/min
Press: Nominal stamping force 200 kN,
stroke 12 mm

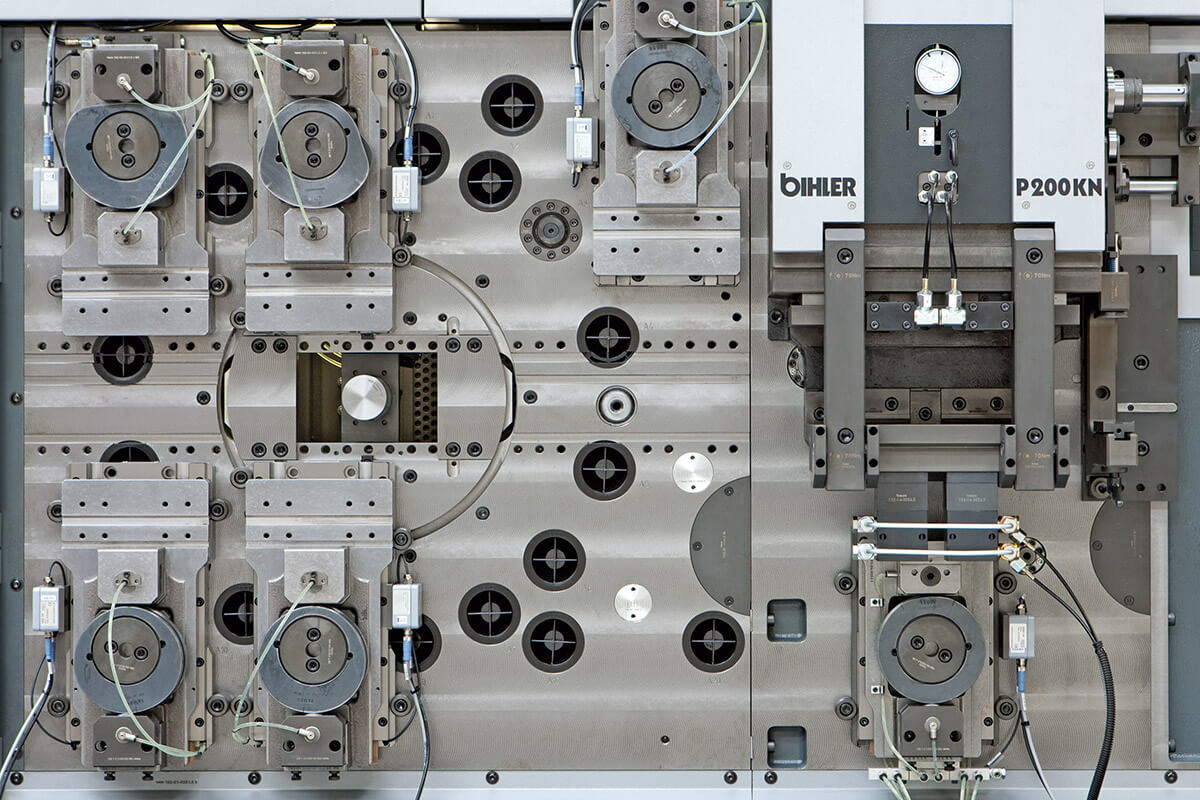

Slide units: Nominal forming force max. 60 kN,
stroke max. 50 mm
Feed length: Servo feed: any, mech. feed: max. 240 mm,
with feed cycle reduction (as option)
Material: Strip thickness max. 4 mm, strip width max.
60 mm (larger strip width on request), wire
Ø max. 4 mm (depending on material and
process)
Dimensions: Width 3,090 mm x depth 2,026 mm x
height 2,320 mm
Weight: Approx. 3,900 kg (without tooling)
