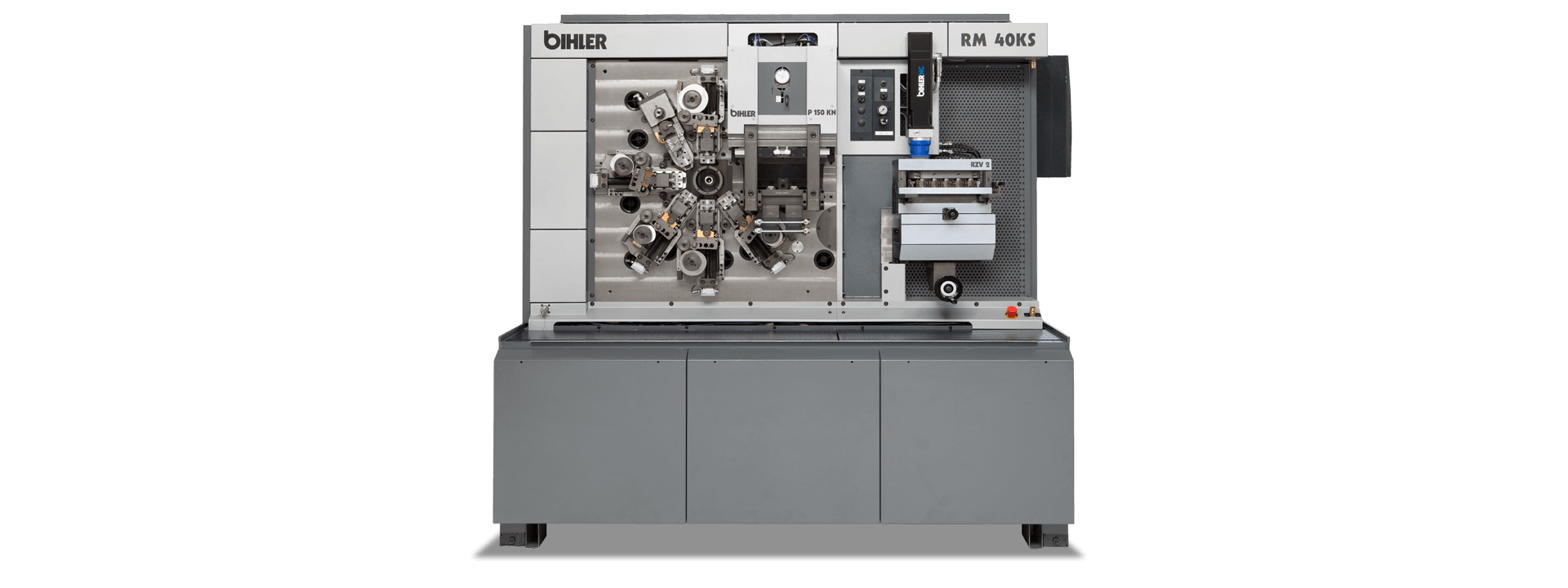

STAMPING AND FORMING MACHINE RM 40KS (MULTI-SLIDE MACHINE)

Highlights RM 40KS

Powerful machine system for enlarged parts range (stamped and formed parts made from high-tensile metal)

  • High production performance up to 350 1/min.

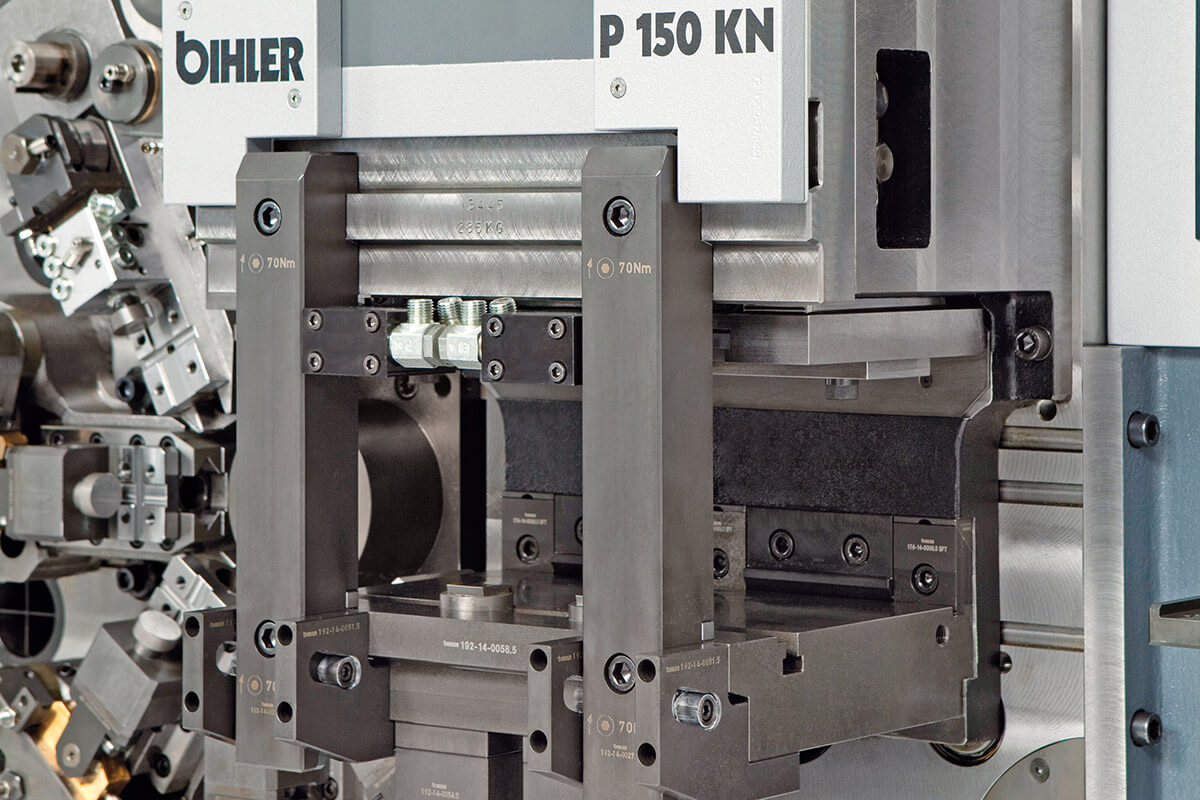

  • Strong 150 kN two-point eccentric press unit with large mounting area
  • High press rigidity allows the use of high performance carbide tools
  • Guaranteed process reliability through press force monitoring
  • Tool clamping system provides minimum set-up time
  • VariControl VC 1 for simple operation and highest process reliability



Technical Data

Stroke rate: Steplessly from 5 to max. 350 1/min
Press:

Nominal stamping capacity 150 kN,
stroke 12 mm

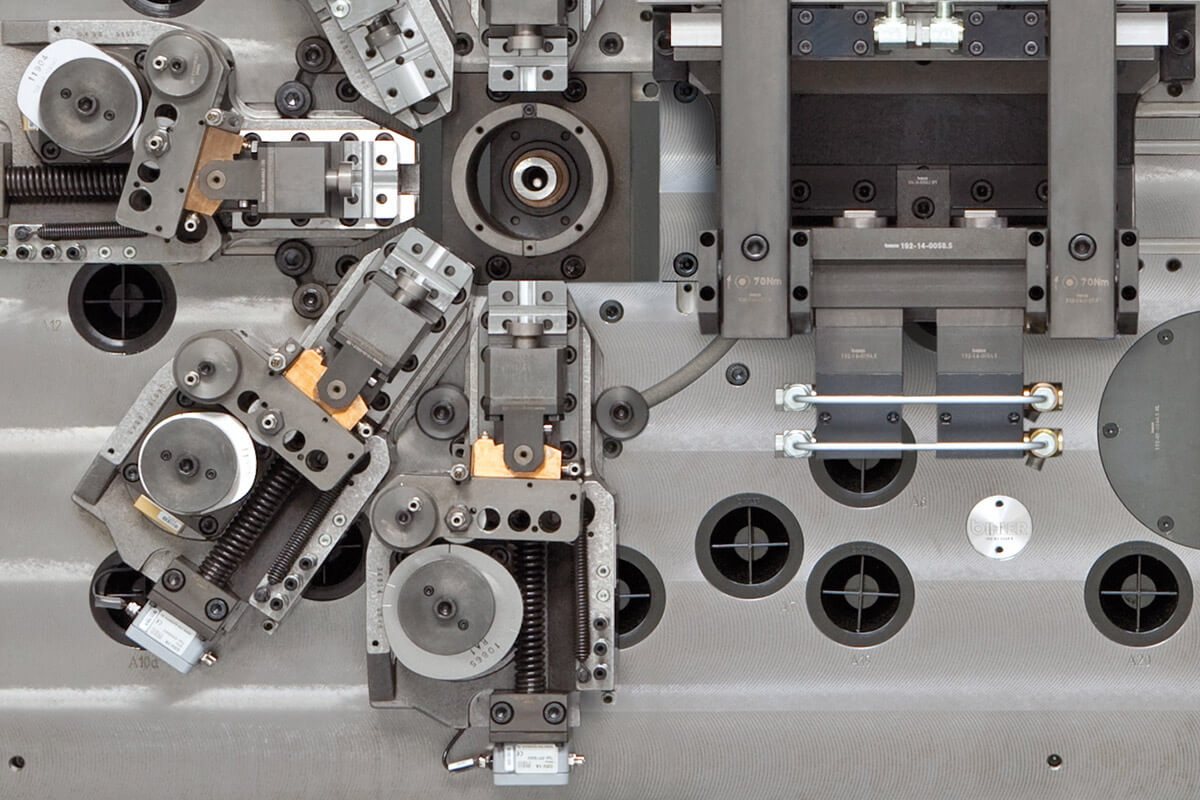

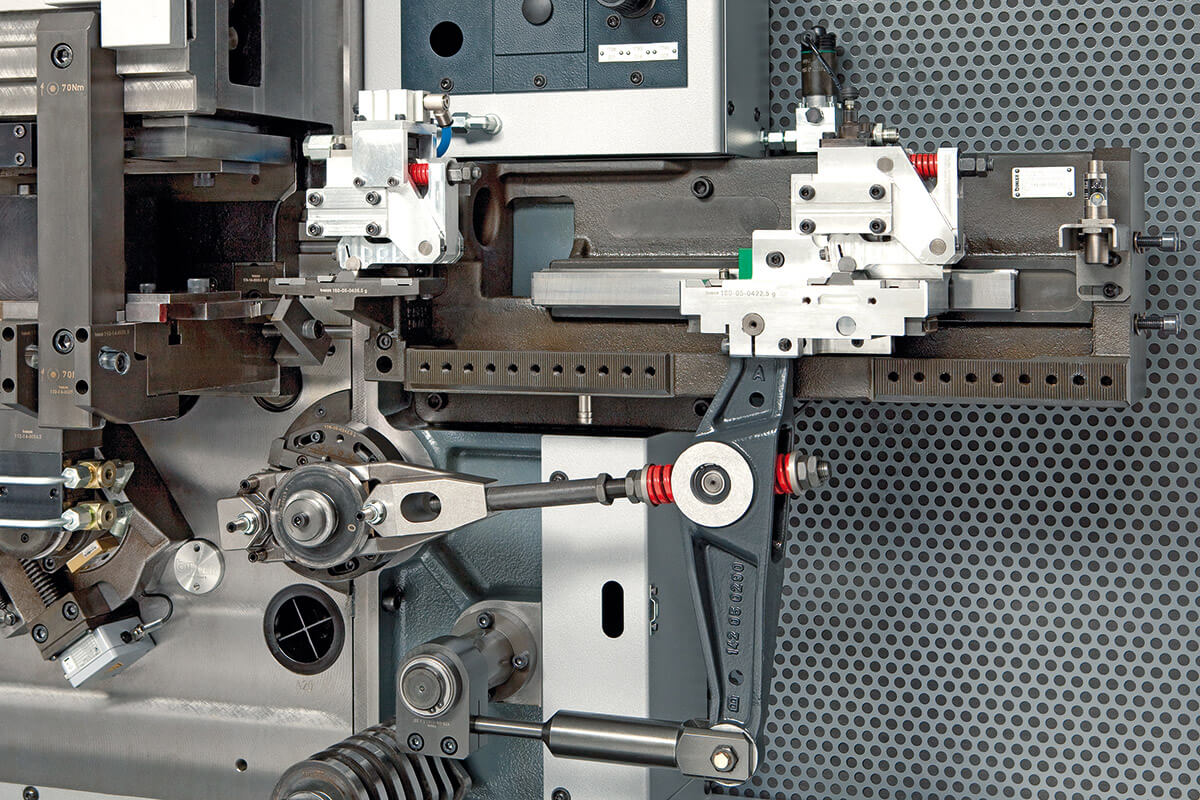

Slide units: Max. nominal forming capacity 60 kN,
max. stroke 50 mm

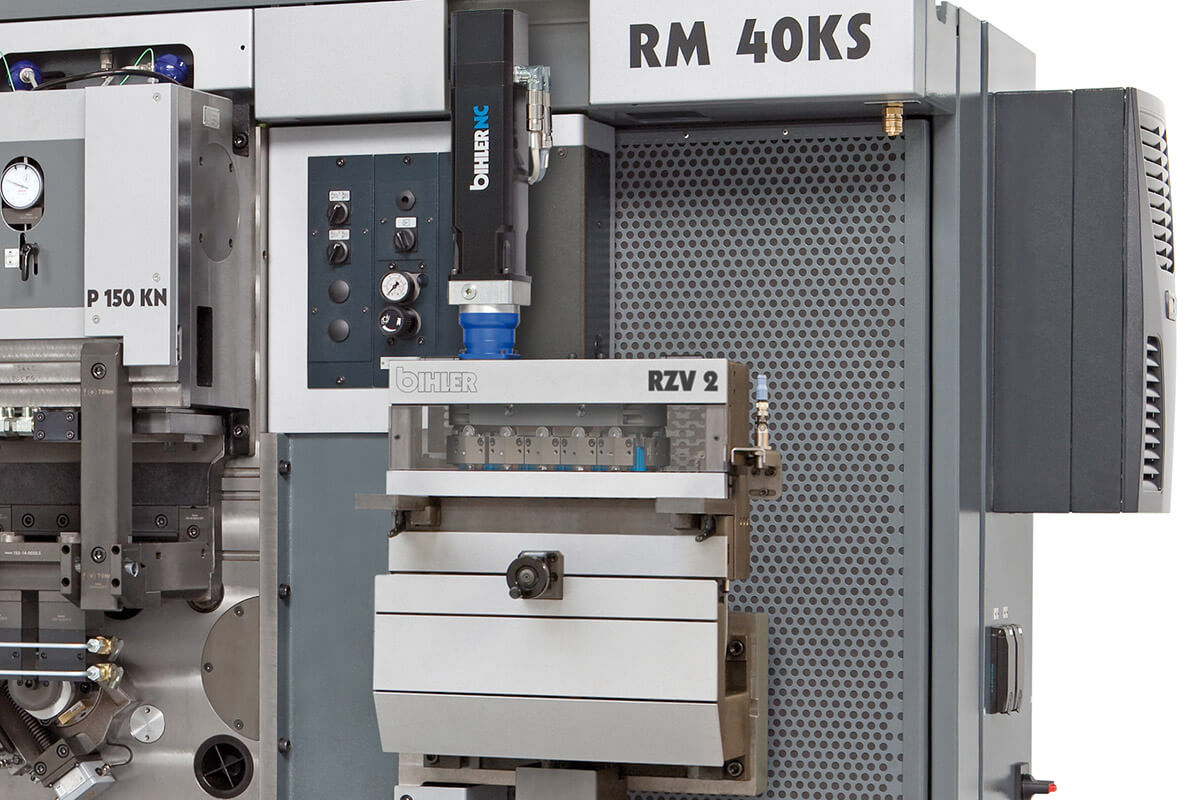

Feed length: NC feed: any feed length, mech. feed: max.
240 mm, with feed cycle reduction
Material: Max. strip thickness: 4 mm, max. strip width
60 mm (larger strip widths on request), max.
wire Ø 4 mm (depending on material and
process)
Dimensions: Width 2,590 mm x depth 2,100 mm x
height 2,450 mm
Weight: Approx. 3.160 kg (without tooling)
