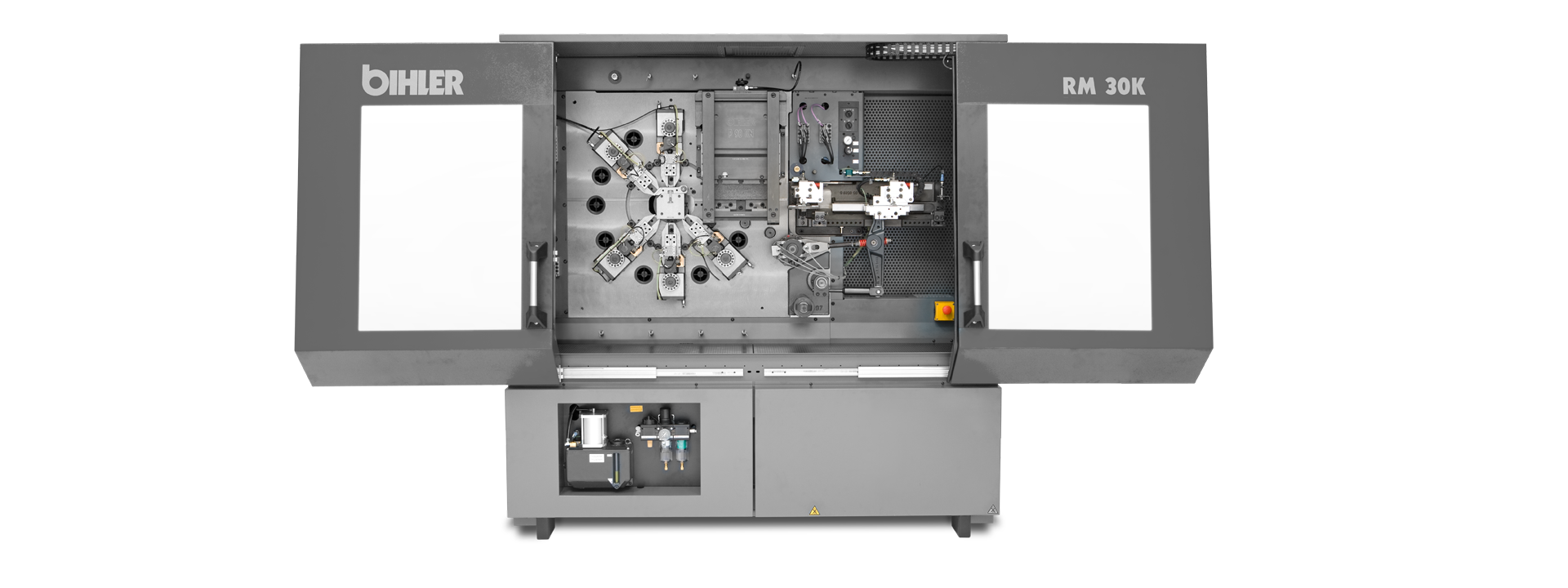

STAMPING AND FORMING MACHINE RM 30K

Highlights RM 30K

Compact production system for the mass production of small stamped and formed metal parts

  • High production speeds up to 350 1/min.
  • Rigid 90 kN two-point eccentric press with large mounting area
  • Center aperture in the work-plate for flexible central mandrel movements
  • 900 mm processing length on the machine plate
  • Compatibility with RM 30E
  • Easy and secure handling with VC 1E control
  • Compact design with integrated control cabinet



Technical data

Stroke rate:
steplessly from 5 to max. 350 1/min.
Processing length:
900 mm
Press:
nominal stamping force 90 kN, stroke 12 mm
Slide units:
nominal bending force max. 40 kN, stroke max. 40 mm
Central mandrels:
max. 3 central mandrels; nominal force max. 20 kN, stroke max. 45 mm; NC central mandrels (as option)
Feed length:
mech. feed: max. 240 mm, with feed time reduction; NC feed: any (as option)
Material:
strip thickness: max. 4 mm, strip width max. 60 mm, wire Ø: max. 4 mm
(depending on material and process)
Dimensions:
width 2,020 mm x depth 1,330 mm x height 2,030 mm
Weight:
approx. 2,000 kg (without tooling)
