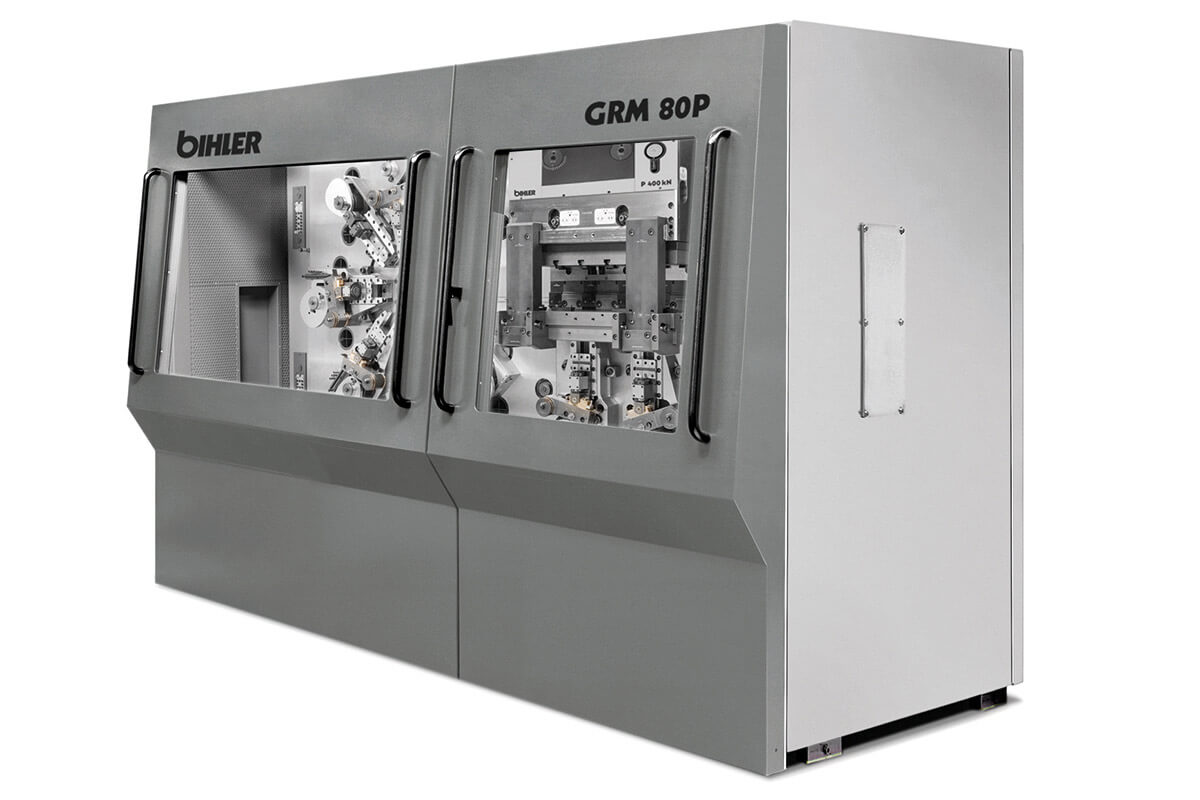

STAMPING AND FORMING MACHINE GRM 80P (MULTI-SLIDE MACHINE)

Highlights GRM 80P

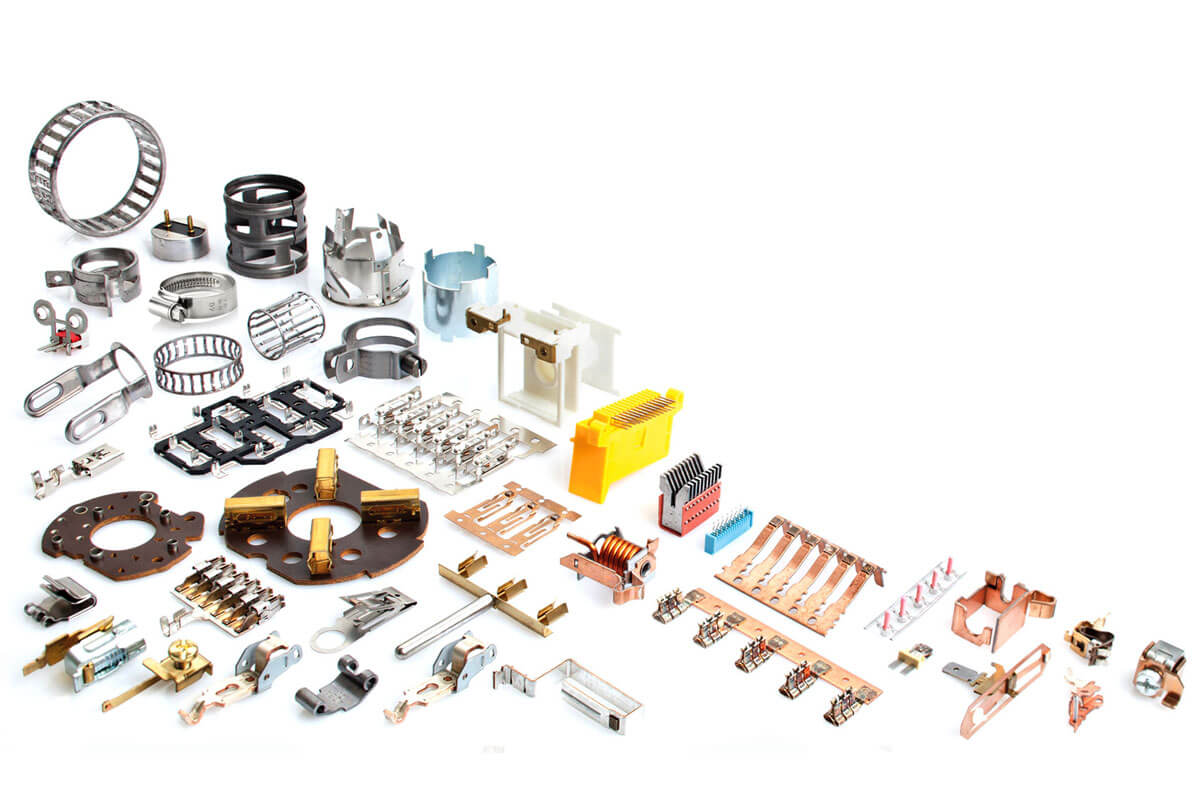

Powerful machining system for mass production of larger stamped and formed parts as well as sub-assemblies

  • High production speeds of up to 250 1/min.
  • Maximum processing room thanks to the spatial division of stamping and forming operations
  • More than 2,100 mm travel for linear tool applications

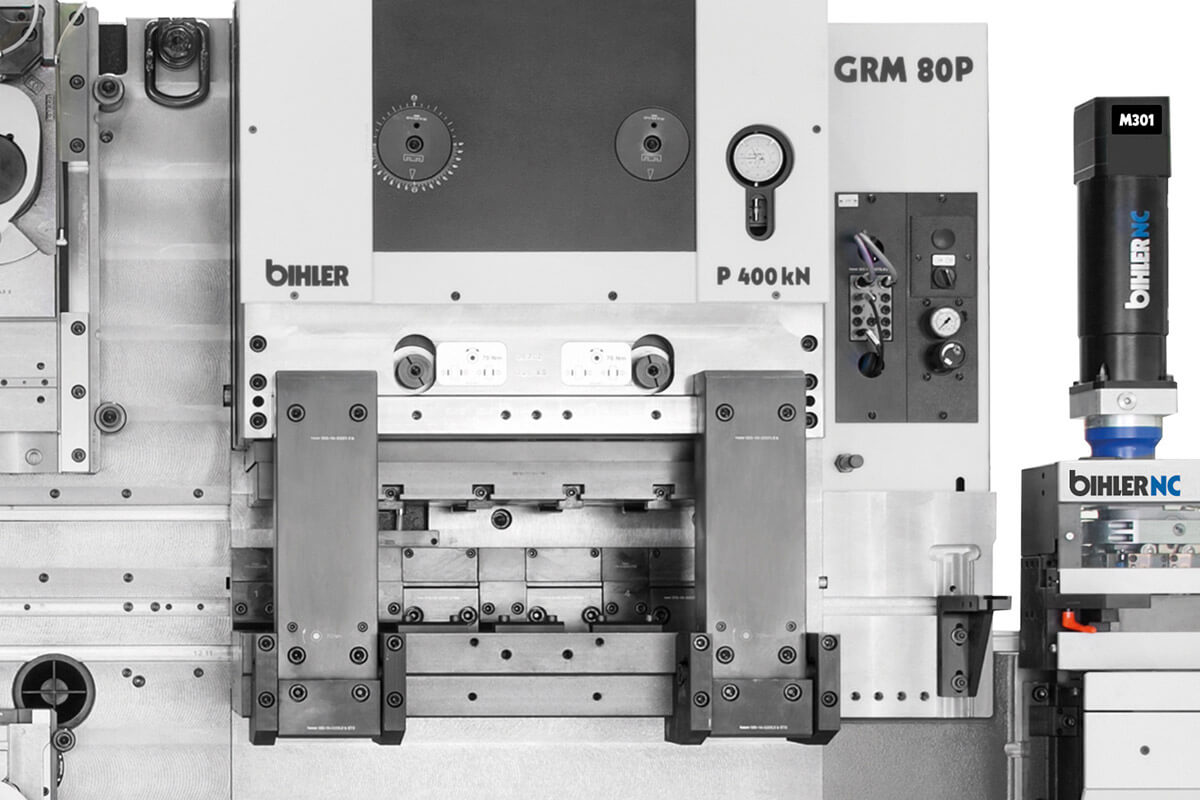

  • Strong 400 kN two-point eccentric press with large installation capacity for bulky cutting tools
  • Easy integration of additional processing units (contact welding, tapping, inserting screws etc.)

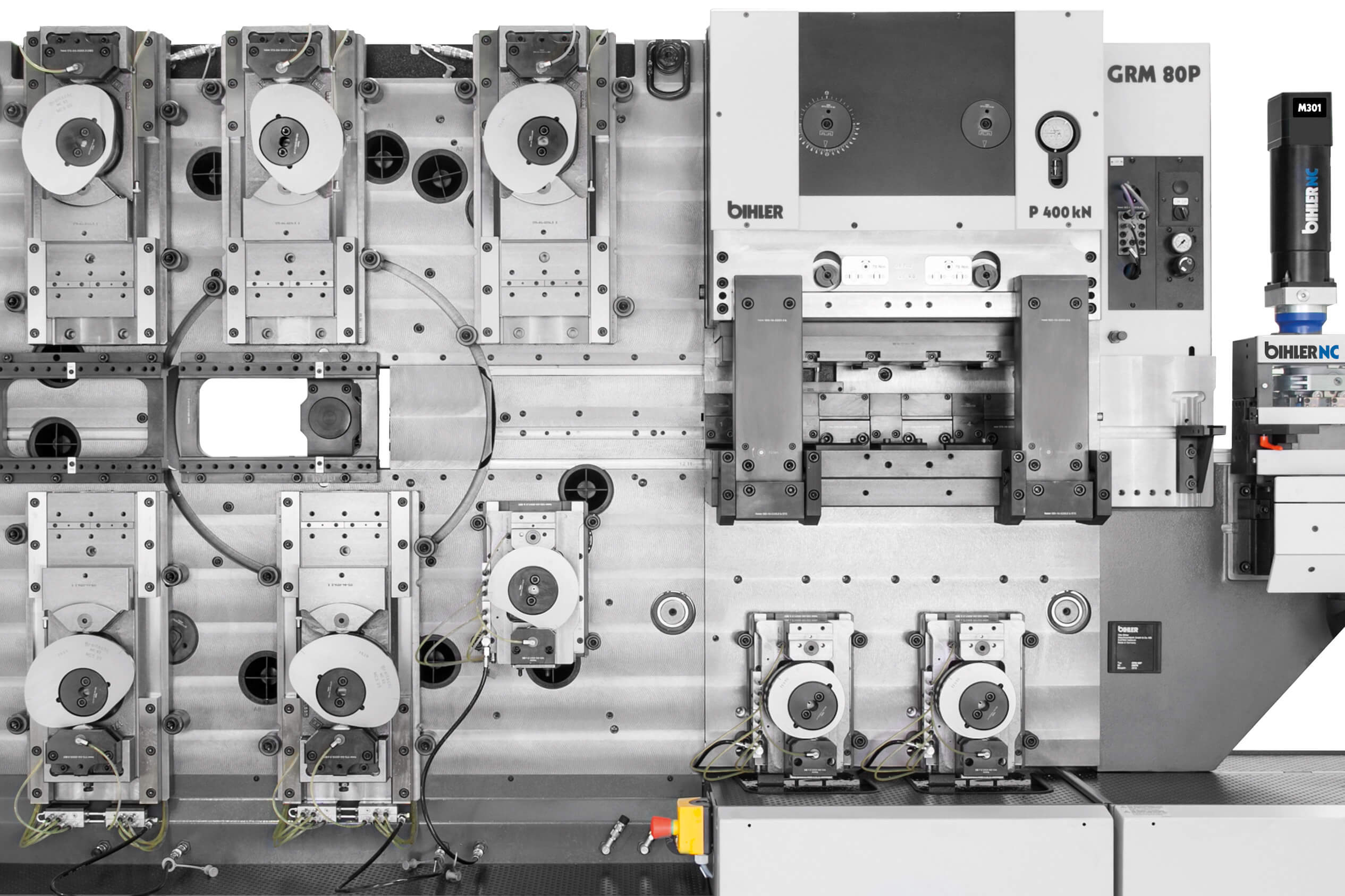

  • Large central aperture in the work plate for flexible central mandrel movements
  • Easy to use VariControl VC 1 with 15“ touch screen

Production of "grounding contacts" - click here for more info



Technical Data

Stroke rate: Variable drive control from 5 to max.
250 1/min.
Press: Nominal stamping capacity 400 kN,
stroke 20 mm
Slide units: Max. nominal forming capacity 90 kN,
max. stroke 95 mm

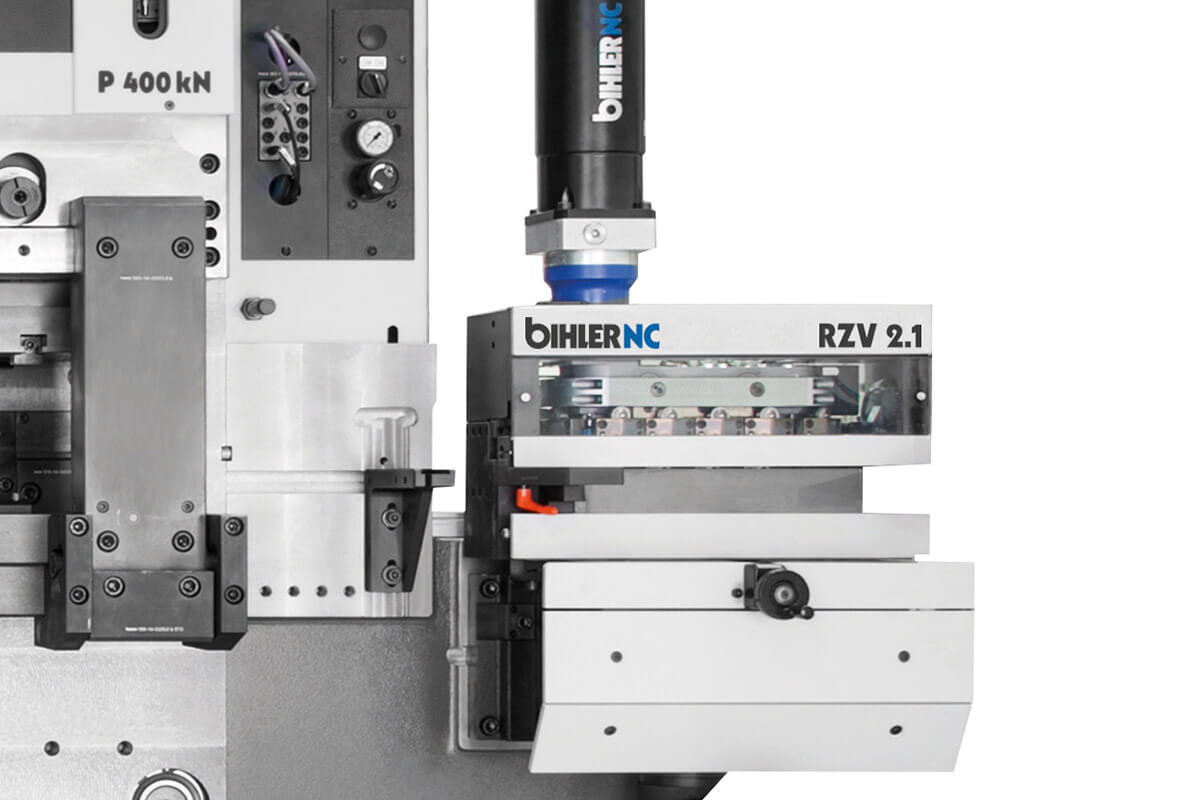

Feed length: NC feed: any feed length, mech. feed:
max. 500 mm, with feed cycle reduction
Material: max. strip thickness: 6 mm, max. strip
width 80 mm, max. wire Ø 6 mm
(depending on material and process)
Dimensions: Width 3,930 mm x depth 1,595 mm x
height 2,220 mm
Weight: Approx. 4,500 kg (without tooling)
