Bihler Multislide Machine GRM 80B for straight bushes and flange bushes

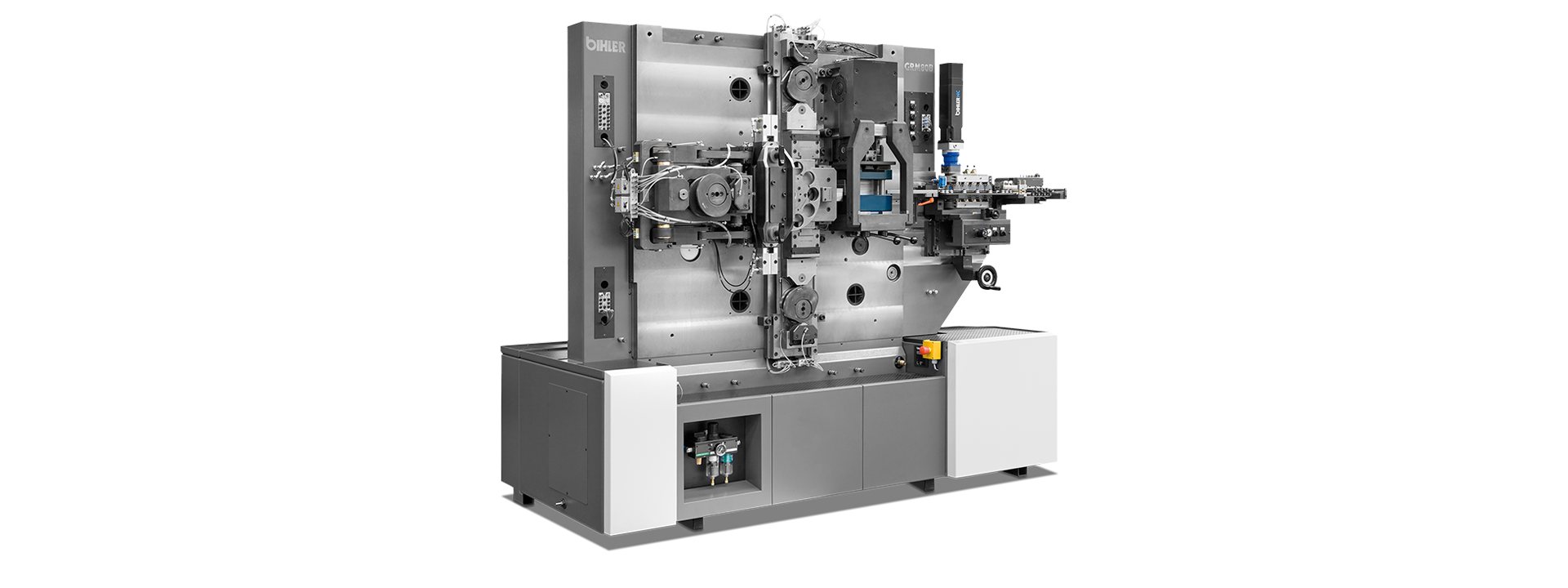

BUSHING MACHINE GRM 80B (MULTI-SLIDE MACHINE)

Highlights GRM 80B

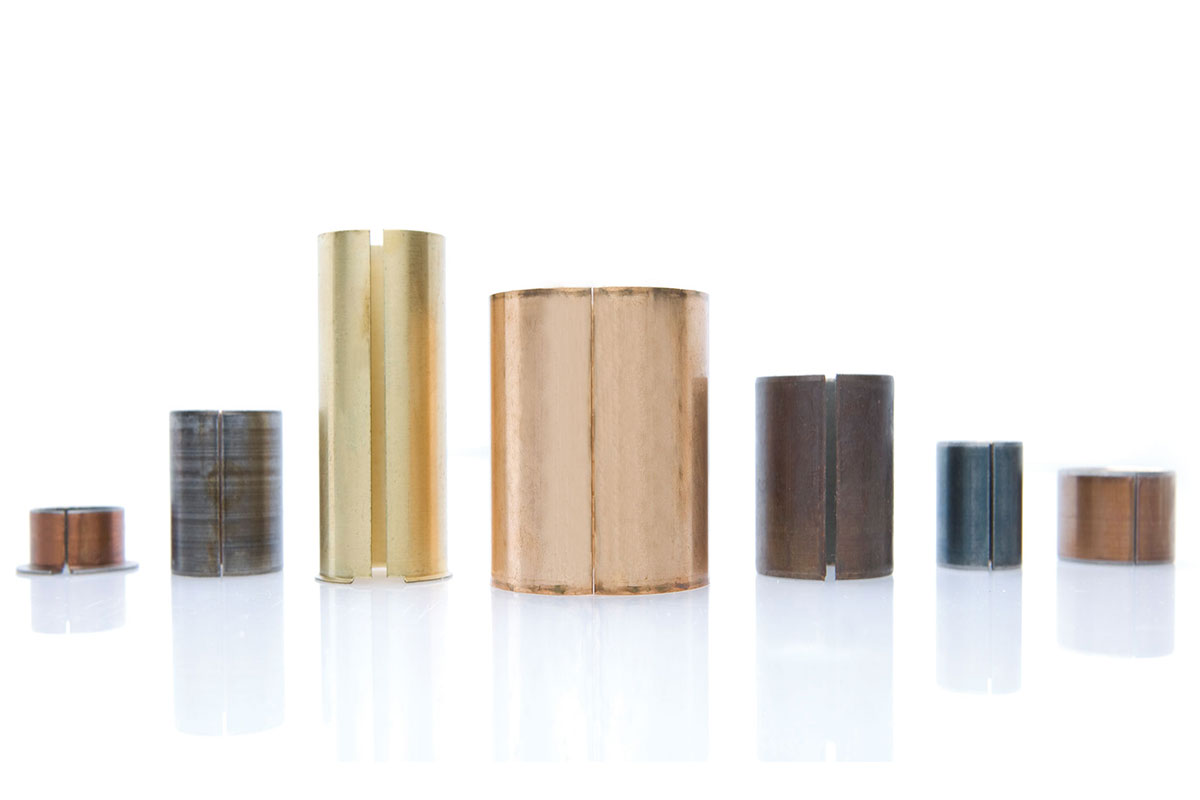

Standardized, powerful machining system for mass production of straight bushes and flanged bushes

  • Bushing inner diameter from 15 to 40 mm; max. length 50 mm
  • High production speeds up to 220 1/min.

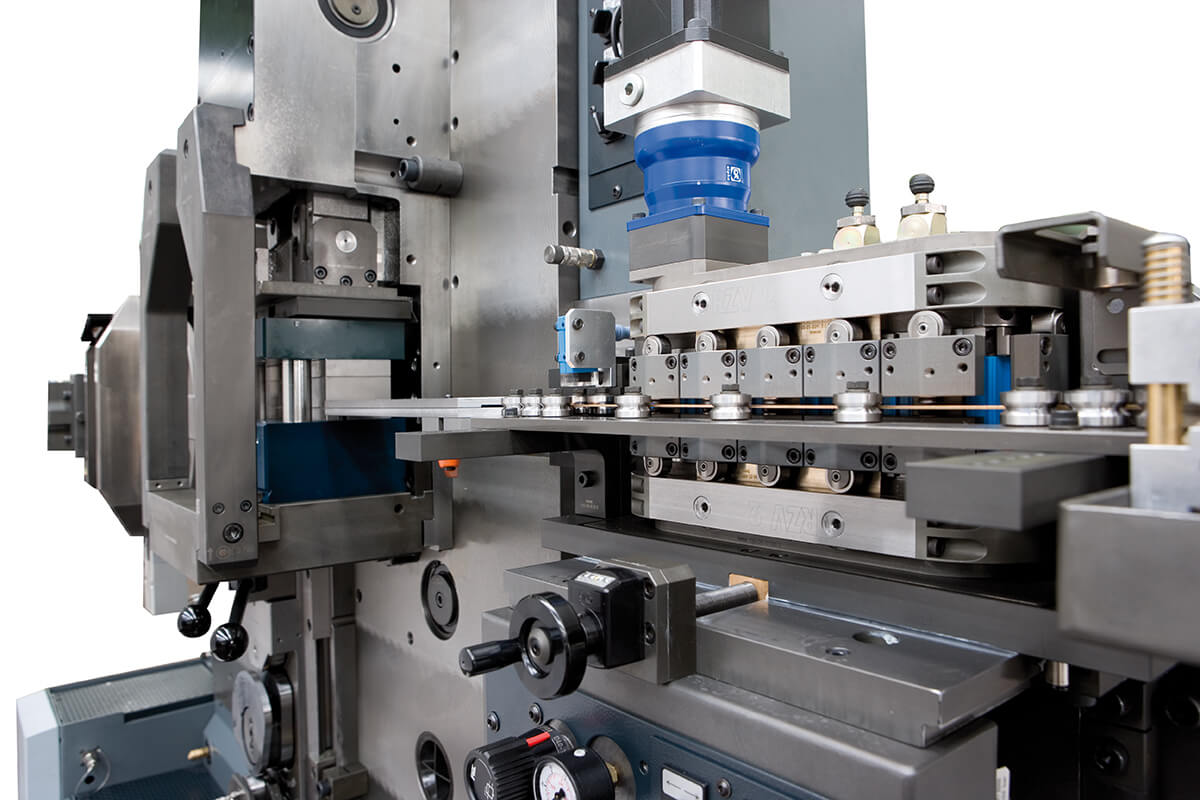

  • Standardized tooling concept (basic tooling, 2 sets of tooling fixtures, active tooling parts)
  • Very short tooling change-over times
  • Perfectly designed for international use (only active parts have to be dispatched)
  • Cost-effective all-in-one package

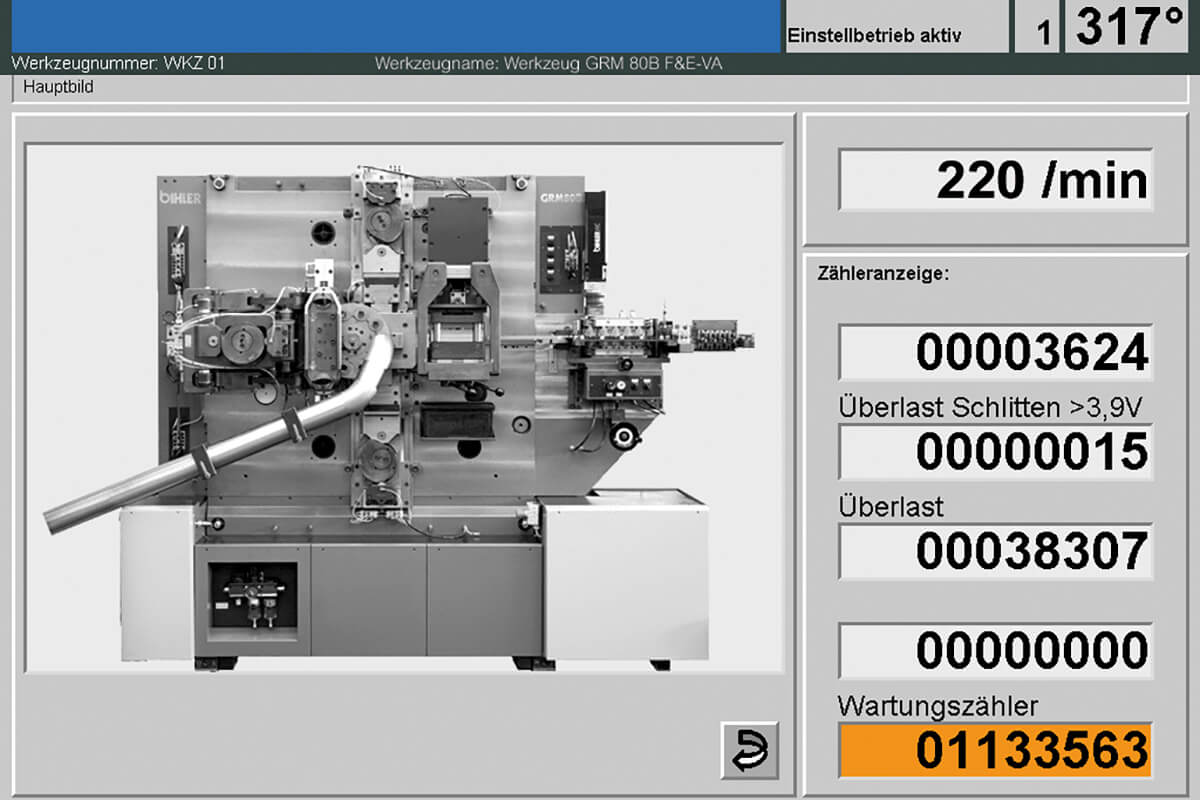

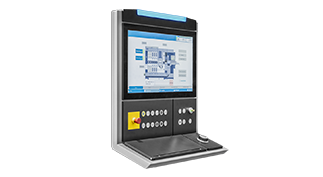

  • Easy and secure operation with VariControl VC 1E



Technical data

Stroke rate: Max. 220 1/min. (cylindrical, straight bushes), max. 160 1/min. (flanged bushes, collar bushes)
Press: Nominal stamping capacity 100 kN, stroke 12 mm
Slide units: Nominal forming capacity 50 kN, stroke 50 mm
Bushing inner diameter: 15 mm - 40 mm
Bushing length: Max. 50 mm
Material: Strip thickness: max. 2 mm, strip width: max. 50 mm (depending on material and process)
Dimensions: Width 3,140 mm x depth 1,895 mm x height 2,030 mm
Weight Approx. 4,800 kg
  READ MORE ►



Technology in Motion - GRM 80B

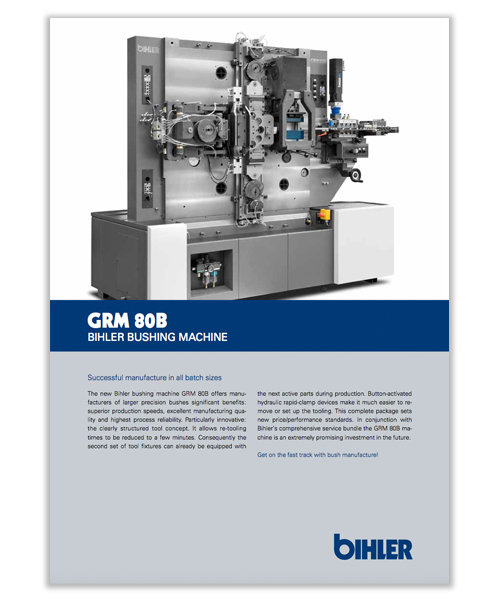

Flyer GRM 80B
