HIGHSPEED MULTICENTER MCS 1 (MULTI-SLIDE MACHINE)

Highlights MCS 1

High-performance machine system with two processing faces for mass production

  • Very high production speeds up to 800 1/min.
  • Maximum economic efficiency through joint radial and linear production of parts and simple sub-assemblies on one same machine
  • High performance level of all standard modules and flexible system modules
  • Highly dynamic material feeding unit for shortest feeding times
  • Large opening in the center for transverse transport from face A to face B or vice versa
  • Easy and secure operation with VariControl VC 1



Technical Data

Stroke rate: Variable drive control from 5 to max. 800 1/min.
Press: Nominal stamping capacity 70 kN, stroke 8 mm
Slide units: Max. nominal forming capacity 30 kN, max. stroke 25 mm
Feed length: Mech. feed: max. 70 mm (without feed cycle reduction), servo feed: any feed length
Material: Max. strip thickness: 4 mm, max. strip width 45 mm, max. wire Ø 4 mm
Dimensions: Width 2,480 mm x depth 2,060 mm x height 2,220 mm
Weight: Approx. 3,000 kg (without tooling)
  READ MORE ►



Technology in Motion - MCS 1

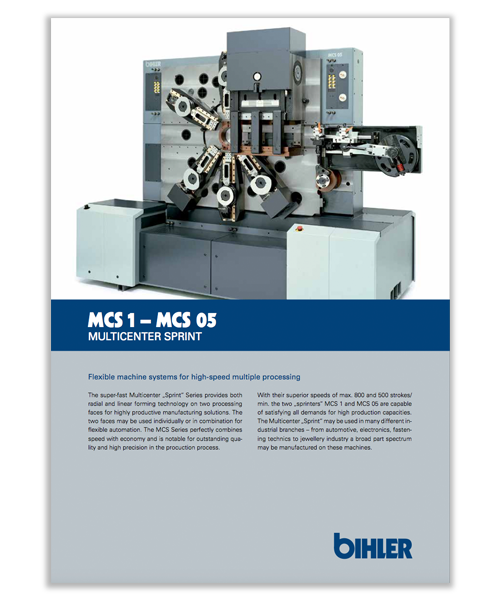

Flyer Multicenter Sprint
