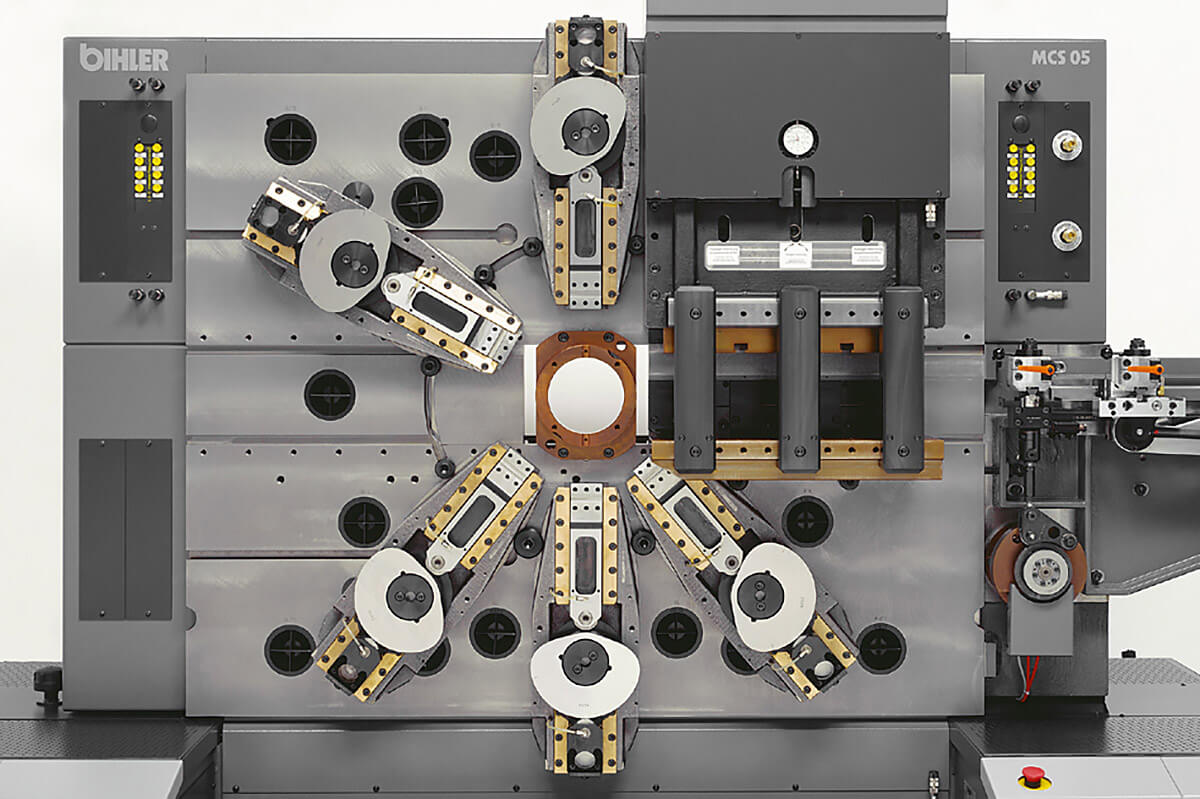

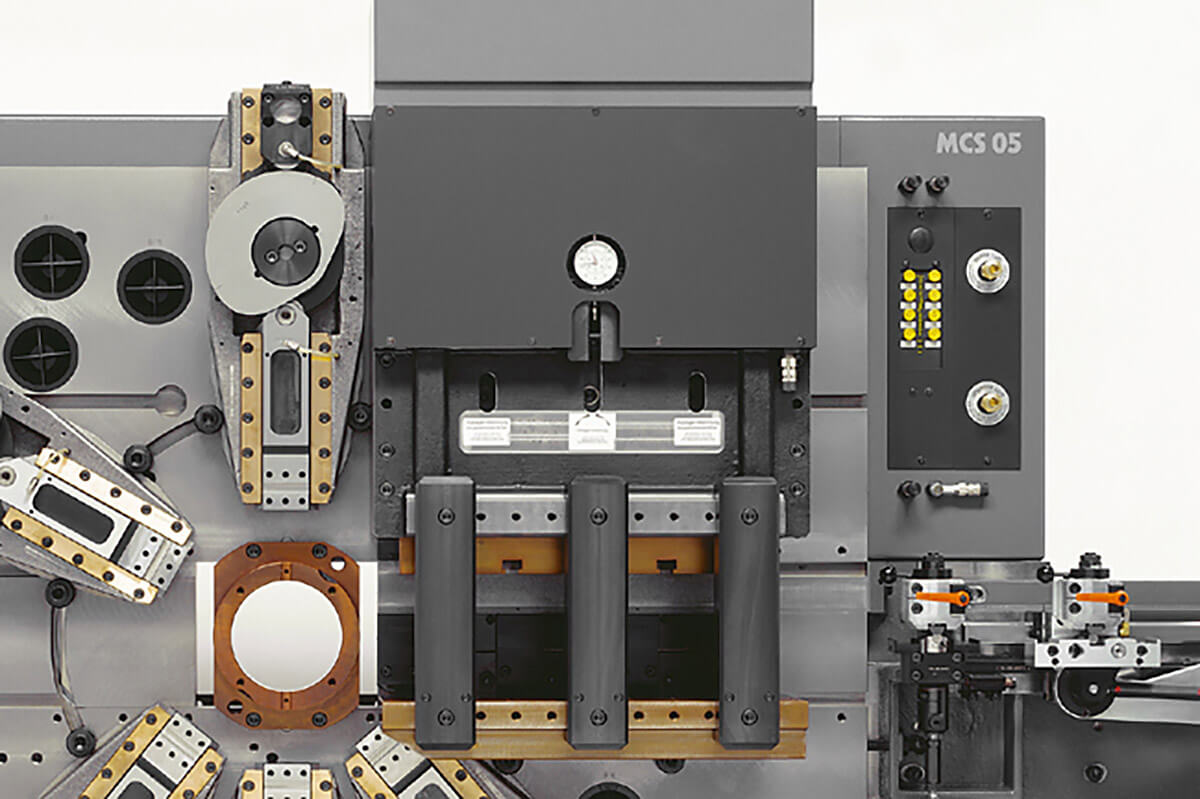

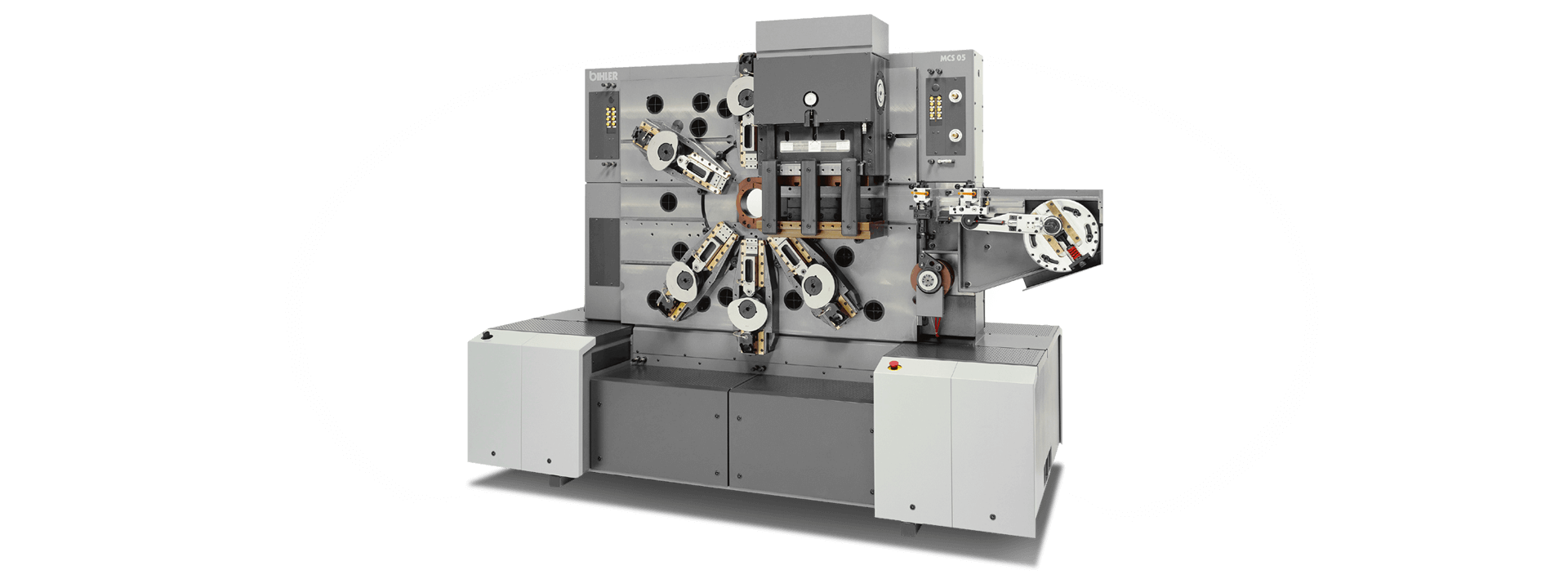

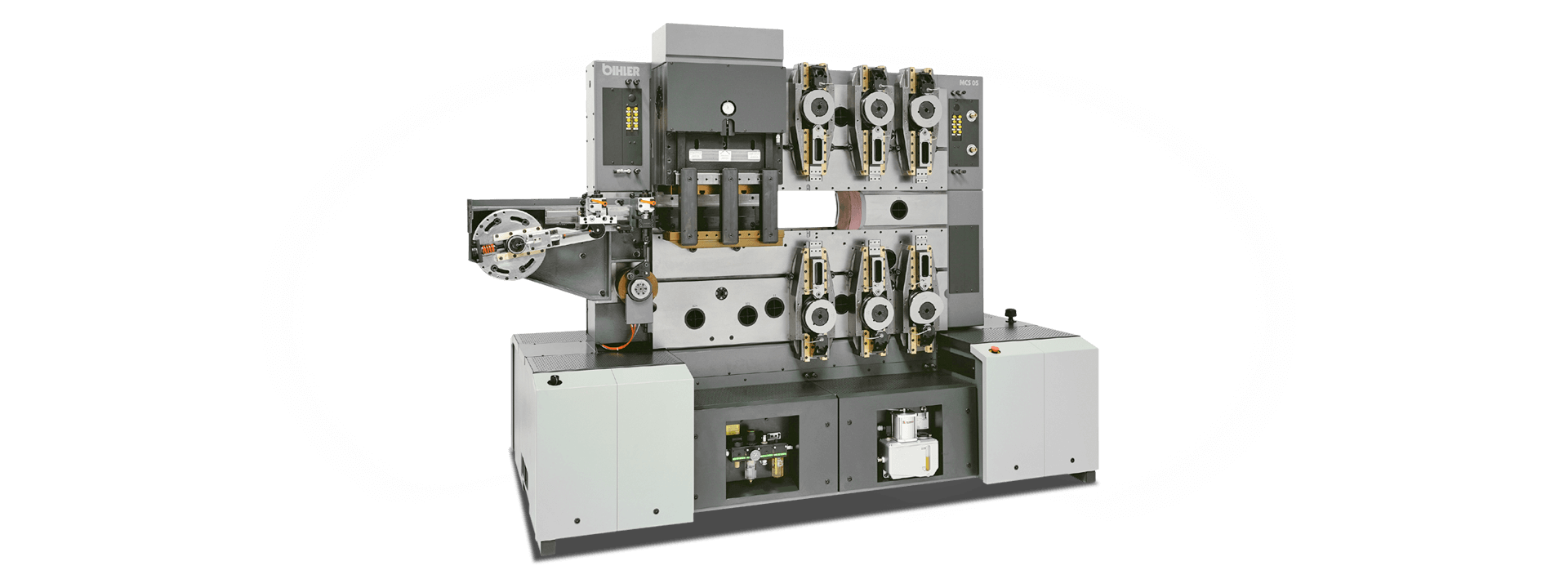

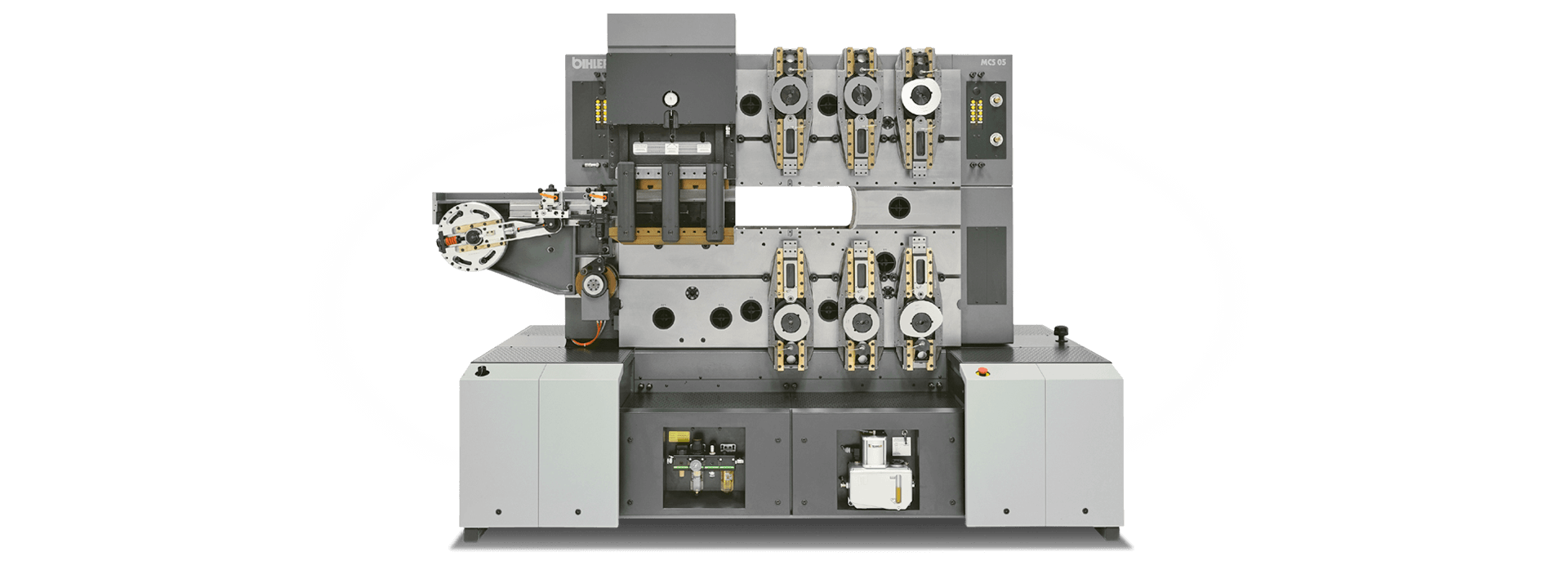

HIGHSPEED MULTICENTER MCS 05 (MULTI-SLIDE MACHINE)

Highlights MCS 05

High-performance machine system with two processing faces for mass production of large stamped and formed parts and sub-assemblies

  • Very high production speeds up to 500 1/min.
  • Maximum economic efficiency through joint radial and linear production of parts and simple sub-assemblies on one same machine
  • High performance level of all standard modules and flexible system modules

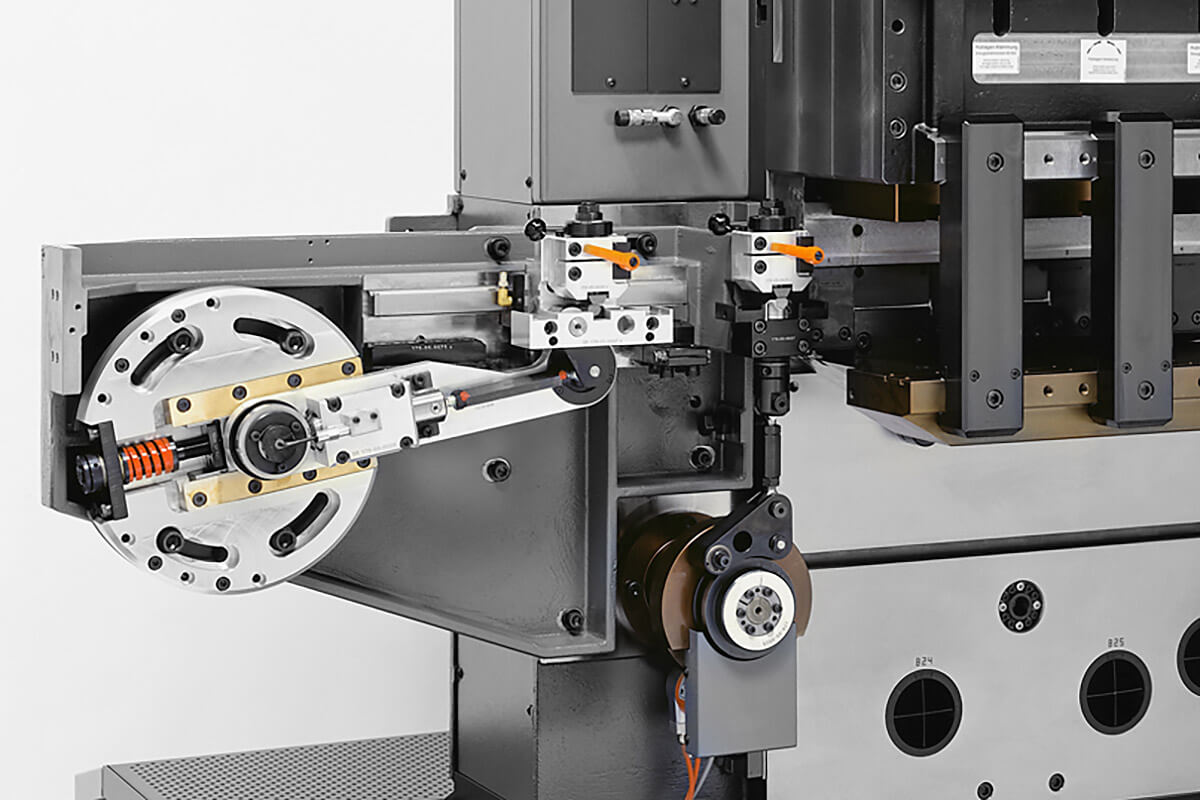

  • Highly dynamic material feeding unit for shortest feeding times

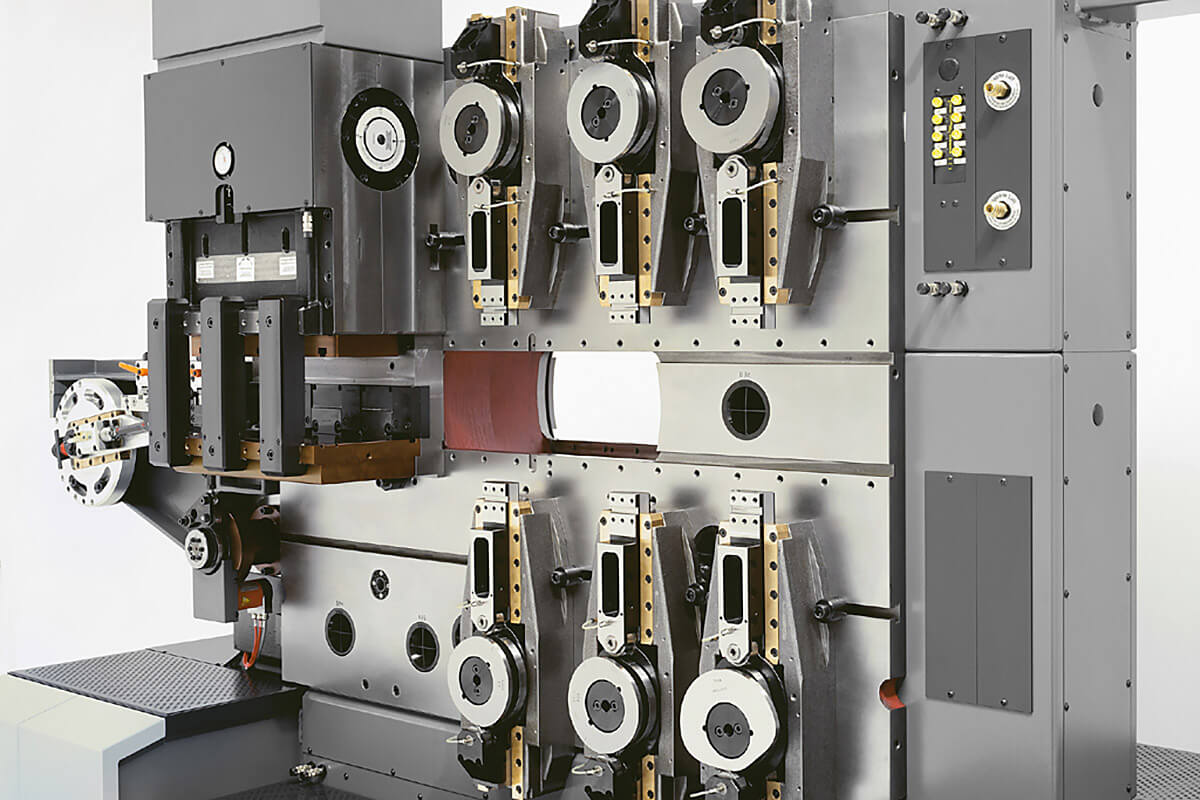

  • Large opening in the center for transverse transport from face A to face B or vice versa
  • Easy and secure operation with VariControl VC 1



Technical Data

Stroke rate: Variable drive control from 5 to max. 500 1/min.
Press: Nominal stamping capacity 300 kN,
stroke 16 mm
Slide units: Max. nominal forming capacity 50 kN, max. stroke 50 mm
Feed length: Mech. feed: max. 160 (without feed cycle reduction), servo feed: any feed length
Material: Max. strip thickness: 6 mm, max. strip width
60 mm, max. wire Ø 6 mm
Dimensions: Width 3,360 mm x depth 2,250 mm x height 2,390 mm
Weight: Approx. 5,000 kg (without tooling)
  READ MORE ►

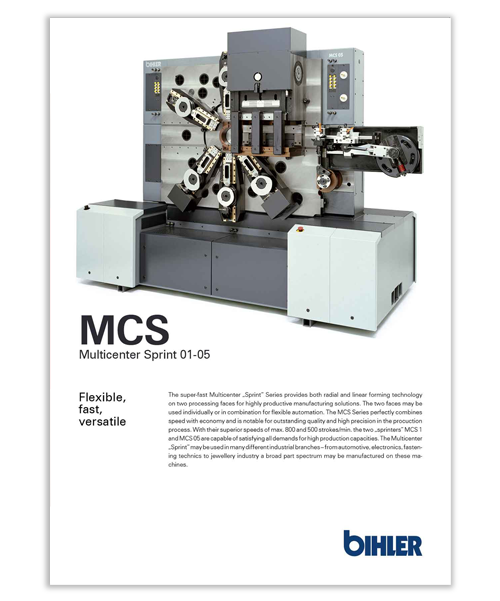

Flyer Multicenter Sprint
