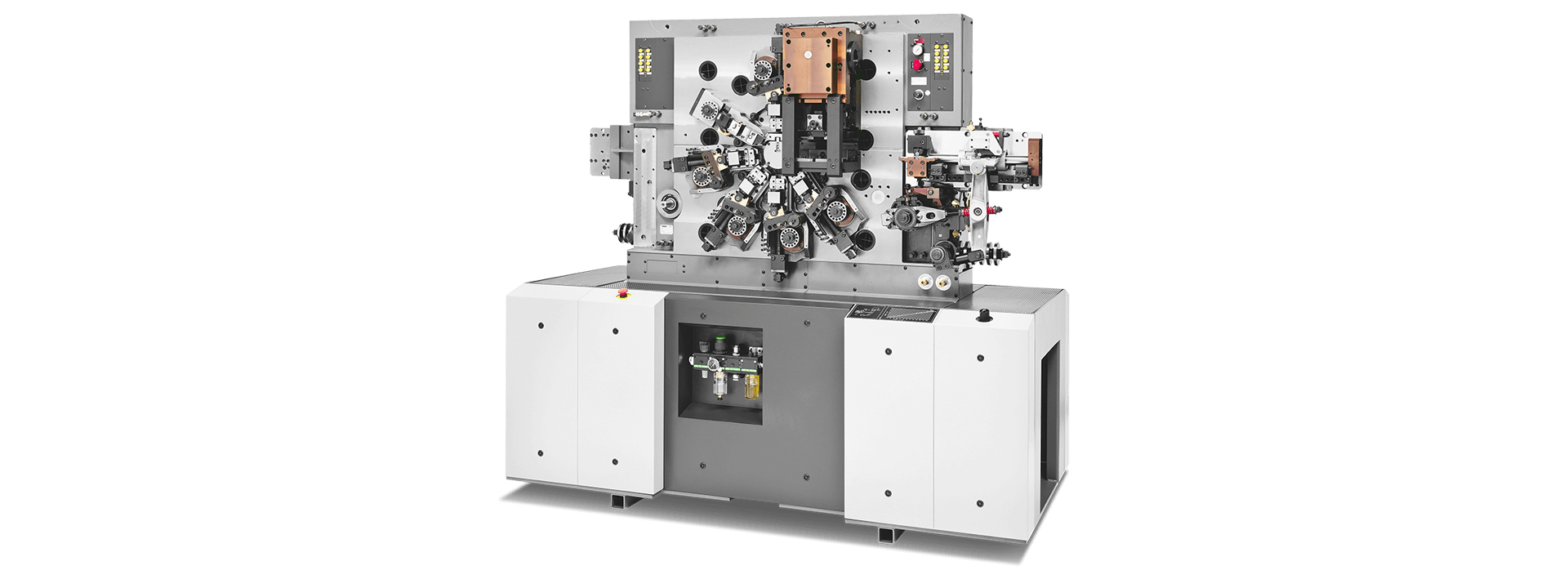

BIHLER MULTICENTER MC 42 (MULTI-SLIDE MACHINE)

MULTICENTER MC 42 (MULTI-SLIDE MACHINE)

Highlights MC 42

Powerful machine system with two processing faces for mass production of small stamped and formed parts and sub-assemblies

  • Highly productive manufacture of complex products with simultaneous production of the individual parts
  • High production speeds up to 350 1/min.
  • Large opening in the center for variable transverse movements
  • High degree of availability owing to rapid tool changeovers and short resetting times
  • Free access to all tool stations facilitates setting up, adjustment and servicing
  • Easy and secure operation with VariControl VC 1

Production of "coaxial plug-in connectors" - Click here for more info



Technical Data

Stroke rate: Variable drive control from 5 to max. 350 1/min
Press: Nominal stamping capacity
90 kN, stroke 12 mm
Slide units: Max. nominal forming capacity 60 kN, max. stroke 40 mm
Feed length: Mech. feed: max. 120 mm or 240 mm,with feed cycle reduction, servo feed: any feed length
Material: Max. strip thickness: 4 mm, max. strip width 60 mm, max. wire Ø 4 mm
Dimensions: Width 2,480 mm x depth
2,060 mm x height 2,220 mm
Weight: Approx. 3,000 kg (without tooling)
  Request form ►



Technology in Motion - MC 42

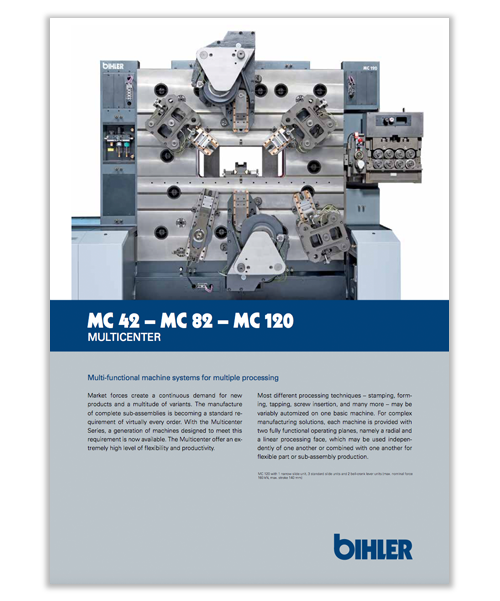

Flyer Multicenter
