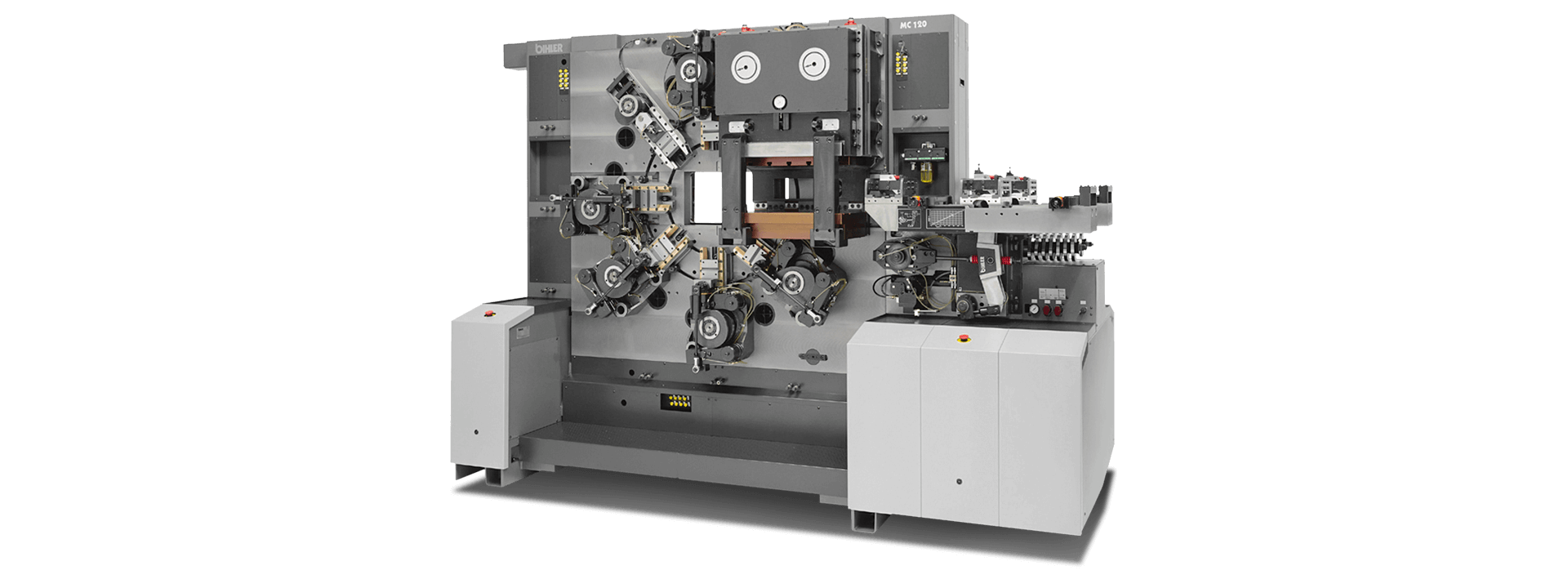

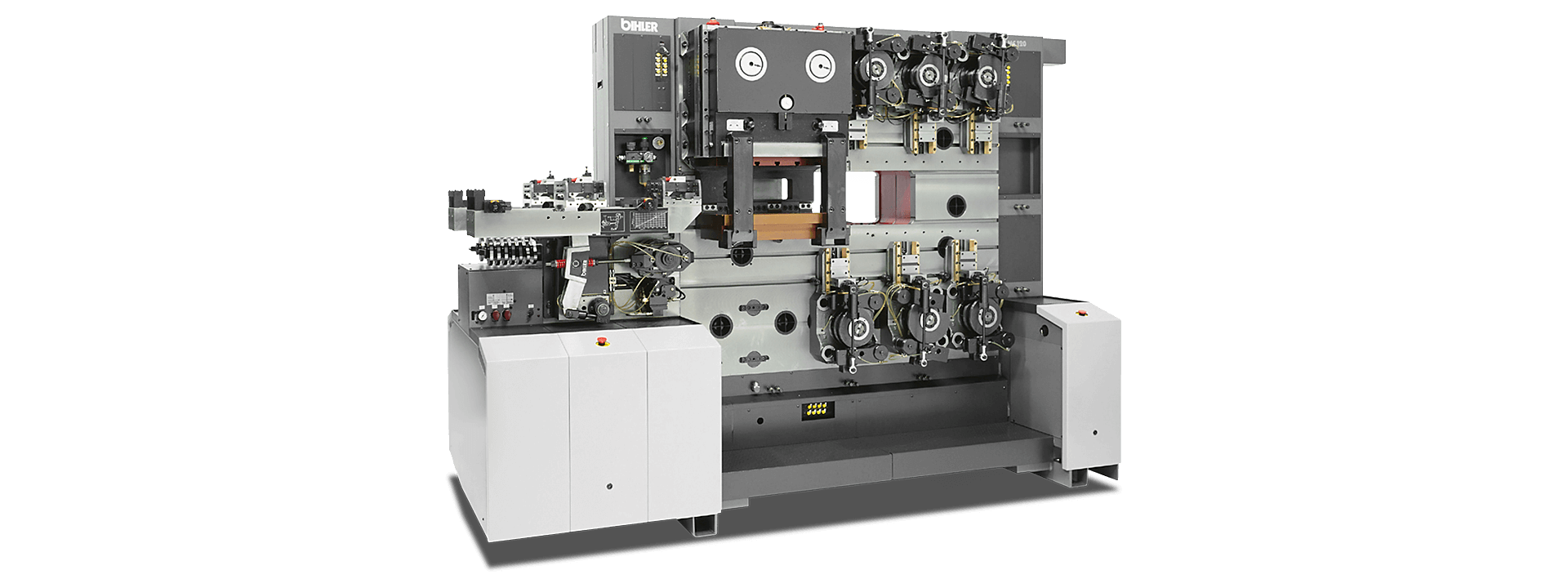

MULTICENTER MC 120 (MULTI-SLIDE MACHINE)

Highlights MC 120

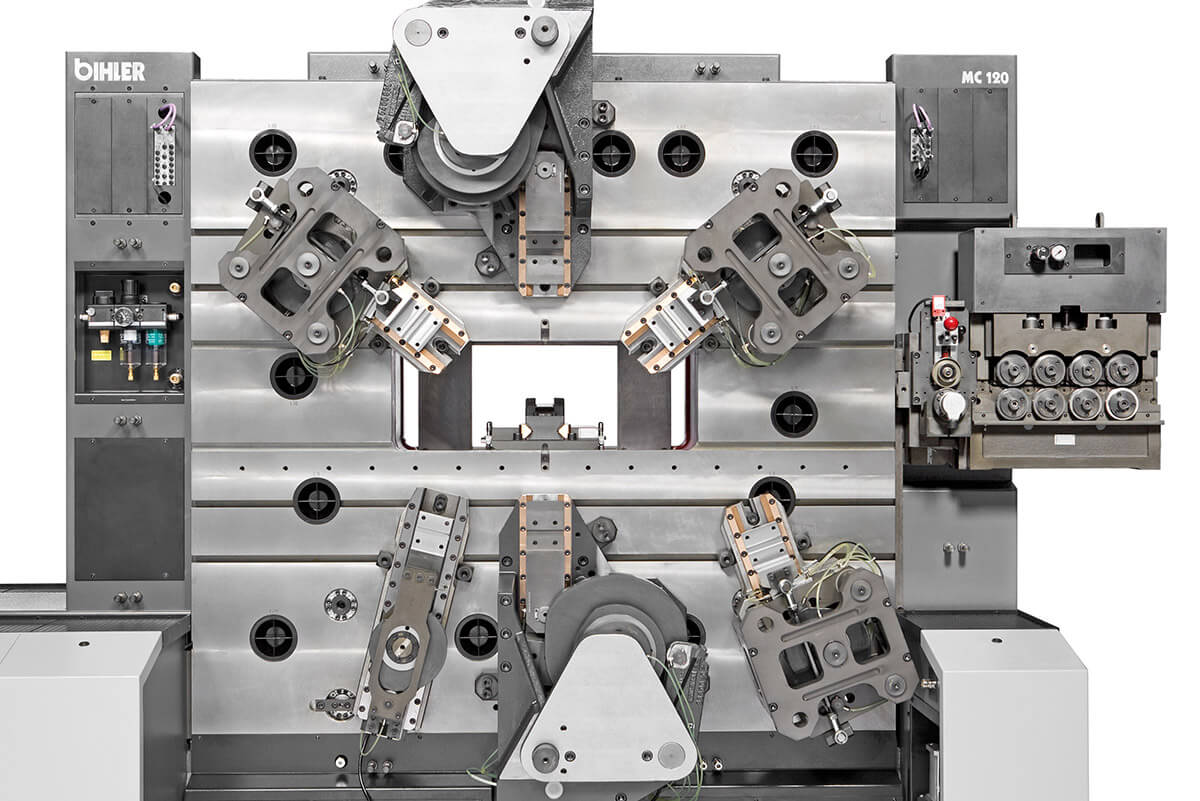

Powerful machine system with two processing faces for mass production of large stamped and formed parts and sub-assemblies

  • Highly productive manufacture of complex products with simultaneous production of the individual parts
  • High production speeds up to 150 1/min.

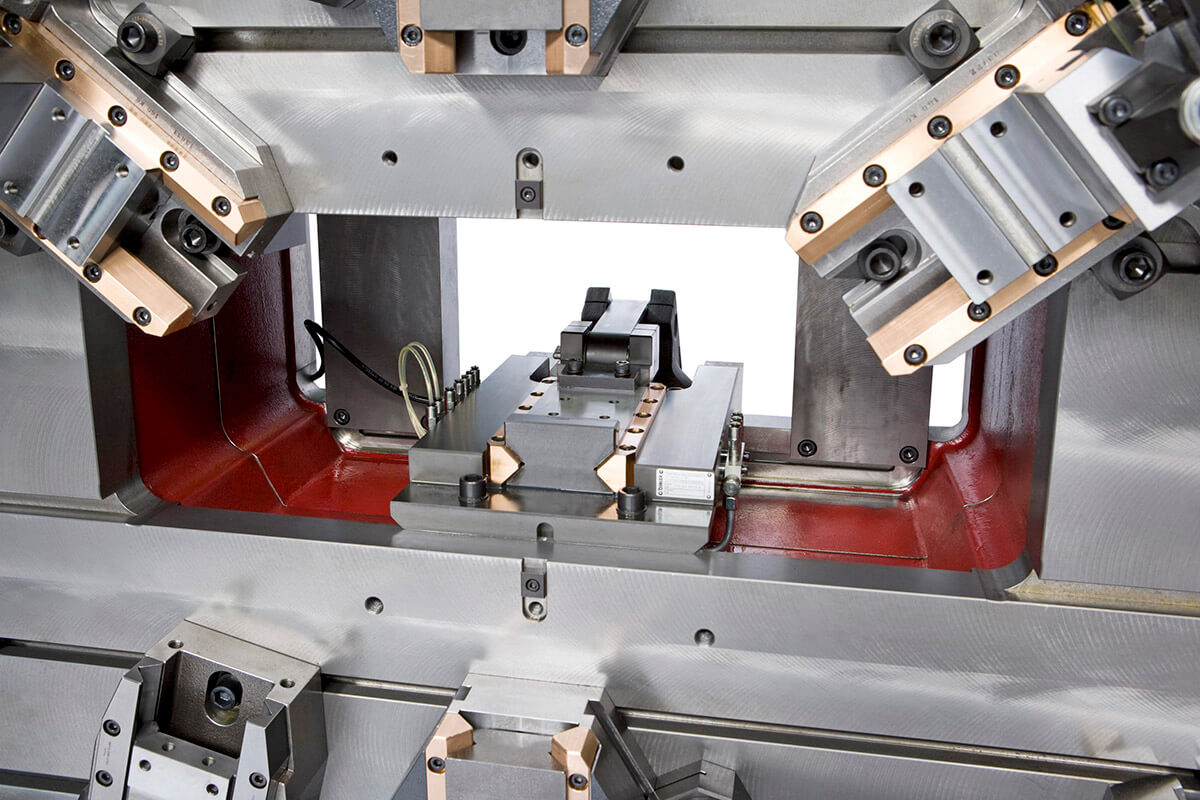

  • Large opening in the center for variable transverse movements
  • High degree of availability owing to rapid tool changeovers and short resetting times
  • Free access to all tool stations facilitates setting up, adjustment and servicing
  • Easy and secure operation with VariControl VC 1



Technical Data

Stroke rate: Variable drive control from 5 to max. 150 1/min.

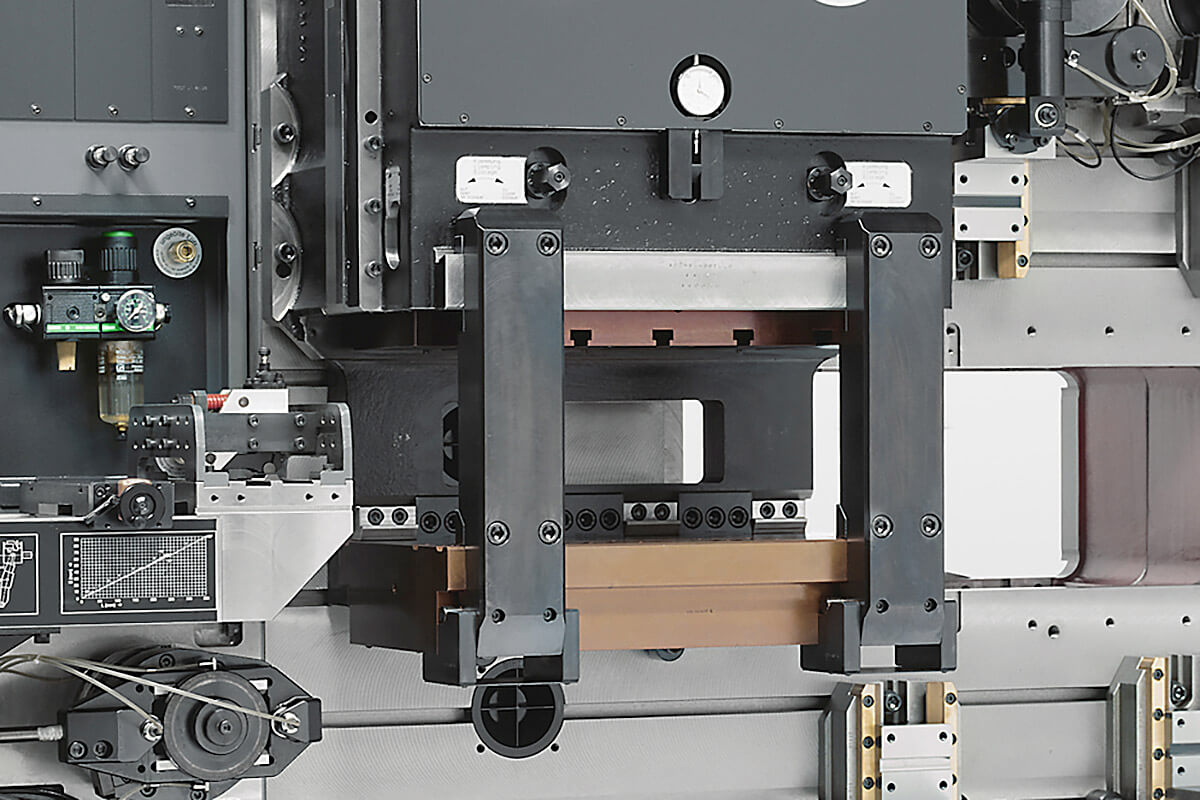

Press: Nominal stamping capacity 700 kN, stroke 16 mm
Slide units: Max. nominal forming capacity
160 kN, max. stroke 140 mm

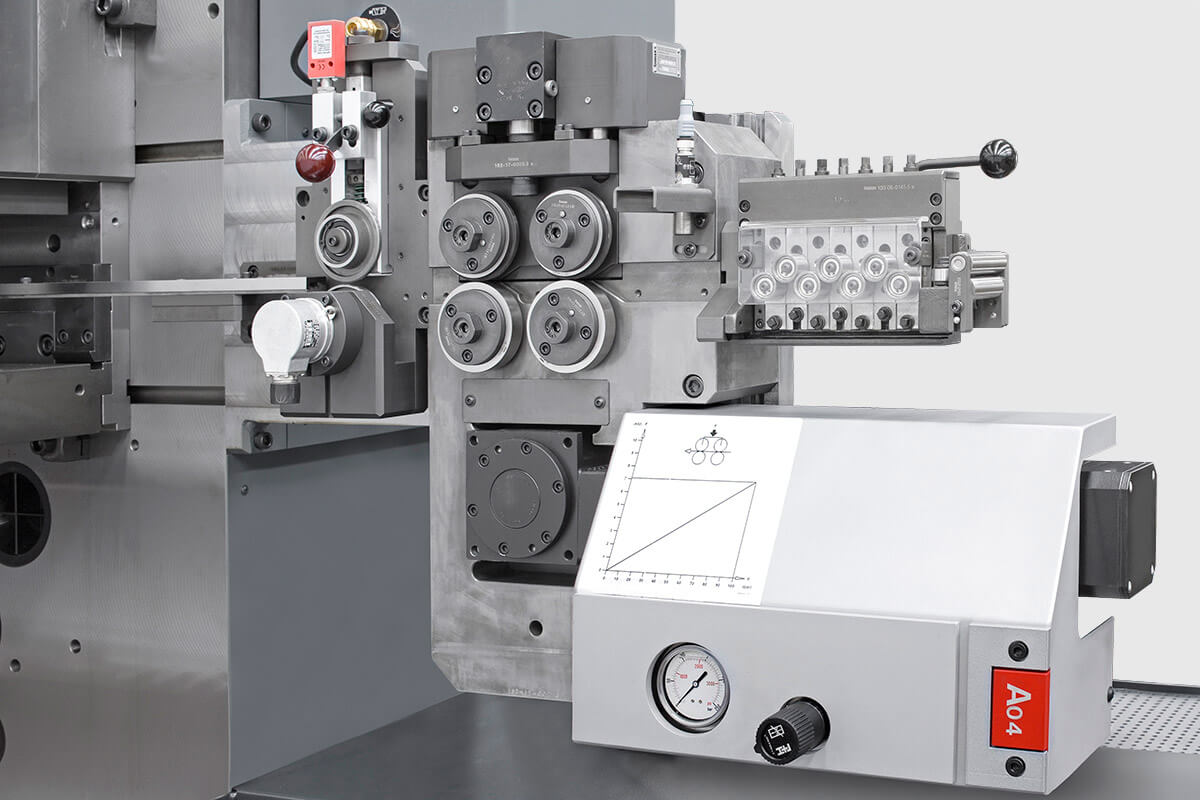

Feed length: Max. 350 mm with feed cycle reduction (lengthwise), max. 150 mm with feed cycle reduction (crosswise), servo feed: any feed length
Material: Max. strip thickness: 10 mm, max. strip width lengthwise 160 mm, crosswise max. 320 mm, max. wire Ø 10 mm
Dimensions: Width 3,580 mm x depth 2,670 mm x height 2,610 mm
Weight: Approx. 10,000 kg (without tooling)
